5" cincinnati-gilbert cnc t-type horizontal boring mill

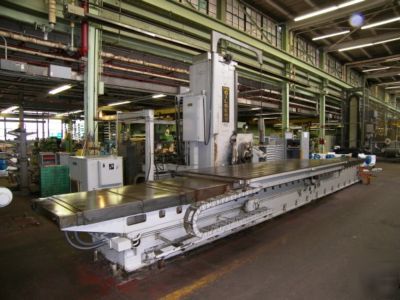

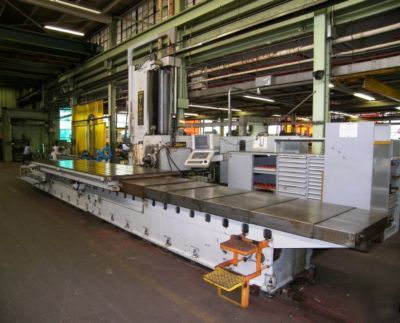

5" Cincinnati-Gilbert CNC T-Type Horizontal Boring Mill
Heidenhain TNC 426 CB Control - New 1996
Spindle Diameter ...................... 5"
Vertical Head Travel, Y-Axis .......... 72"
Table Travel, X-Axis .................. 196"
Column Infeed Travel, W-Axis .......... 24"
Spindle Travel, Z-Axis ................ 36"
Spindle Speeds ........................ 15-1500 RPM
Table Size ............................ 60" x 196"
Table Weight Capacity ................. 60,000 LBS

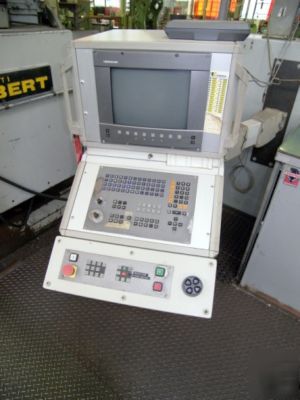

HEIDENHAIN TNC 426CB CNC Control (New 1996)
Ball Screws & Independent Servo Drives
Sliding Steel Way Covers on X-Axis
