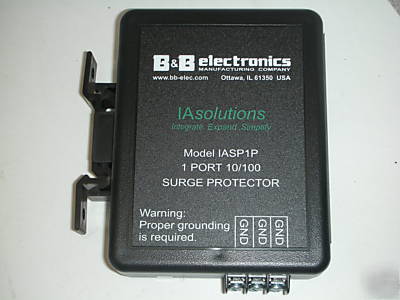

B&b electronics IASP1P 1 port 10/100 surge protector
B&B ELECTRONICS IASP1P 1 PORT 10/100 SURGE PROTECTOR
Single Port Ethernet Surge Protector
The IASP1P is a single port Ethernet surge protector, designed to protect the 8 lines (4 pair) used in a standard CAT-5
cable. The IASP1P is compatible with 10 /100 Base T networks. Network connection to the IASP1P is by RJ45 female
connectors. Grounding is accomplished using screw terminals. Additional terminals are provided allowing multiple
IASP1P s to be connected together.
Low capacitance loading (< 50pF)
Two standard RJ45 connections allow the IASP1P to be placed inline between any two Ethernet devices. A three
terminal grounding post is provided to connect the IASP1P to earth ground. The extra terminals allow you to connect
several IASP1P surge protectors together to protect multiple data lines.
Length (A): 4.75 in. (11.4 cm)
Flange Width (G): 3.125 in. (7.9 cm)
Total Depth (F): 4.1 in. (10.4 cm)
Flame retardant ABS plastic (UL 94-5VA)
Temperature 0 to 70 C (32 to 158 F)
