> Green soic dip dil prototype board: atmel pic dsp
Green soic dip dil prototype board: atmel pic dsp

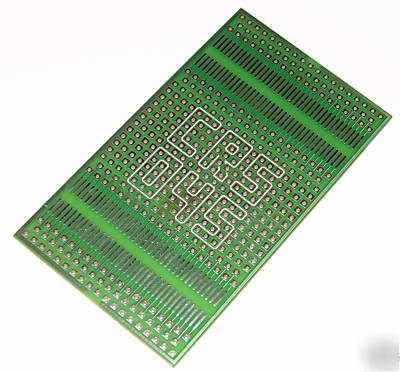

Product photo (click on photo for view large resolution)
Press for view in large resolution CR5-045 prototype board
1 layer SOIC, DIP (DIL) prototype board (with prototype area)
This 1 layer prototype board can be can be used by developers who want to quickly start working with any TQFP-64, SOIC or DIP (DIL) integrated circuit.
* High quality 1 layer prototype board with green mask
* Two large SOIC placement. Each placement with 74 pins (37 pins each side) . Can be used for mounting 2-3 IC's in SO-14, SO-16, SO-20 or any other IC in SOIC case (for example MAX232, SN74HC244 or other). All pins of SOIC placement have pads for soldering any wire or connector (extension pads)
* prototype area with 1mm diameter holes (12x19 holes grid). Standard grid 2.54mm (0.1") allow to mount any IC in DIP (DIL) case.
