*high resolution* ultrasonic thickness tester gage dw-2

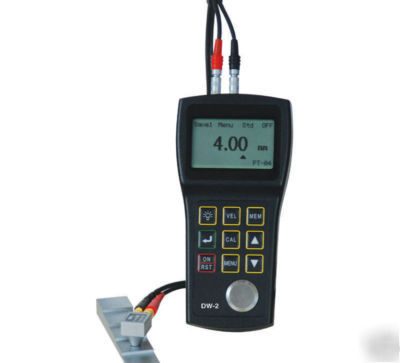

Ultrasonic Thickness Gauge / Tester - DW-2
High Resolution of 0.01mm or 0.001 inch
~~ High Accuracy and Reliability ~~
** Well Made, Well Shaped, Well Performed and Best Priced **
!! Brand New !! One Year Worldwide Warranty !!
~~ 14 days Money Back Guarantee ~~
email us if you have more concerns about the product or warranty for this item.
The DW-2 is a high accuracy, hand-held Ultrasonic Thickness Gauge with the best performance and reliability over the world! It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It features reliable and stable reading, convenient data display (in both millimeters and inches), high resolution (0.01mm), simple to use through the menu, durable and comfortable exterior structure, low power consumption (two of AA batteries). These features make DW-2 unequalled in its performance as well as its value!
DW-2 is manufactured under the strict quality control guidelines established by ISO 9001: 2000 Standards. Its quality is insured by our return policy and full-coverage warranty.
DW-2 Main Processor with Built-in Calibration Block (4.0 mm)
Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
Foam-Fitted Carrying Case to provide the best protection for the gauge
4mm end-diameter probe with cable (working range: 0.8 mm - 22.0 mm or 0.03 in - 0.85 inch) ($189.00 extra)
Communication Kit (RS-232 Cable + Software) between PC and tester unit ($149.00 extra)
RS-232 to USB Converter with driver CD ($19.00 extra)
5 Level (4 step) Chrome Calibration Block - in inch ($49.00 extra)
Rubber Protective Case ($39.00 extra)
One Year for main unit, 180 day for the probe.
* Measuring method: Ultrasonic pulse echo
* Measuring range: 0.80 - 220.0 mm (or 0.03 - 8.66 inch) -> in either mm or inch
* Display in both mm and inch
* Accuracy: (0.5%H +/- 0.02) mm (H -> thickness of the sample)
* Sound velocity range: 1,000 - 9,999 m/s, adjustable by 1 m/s
* 4 digit LCD display with advanced backlight
* Automatic power-off after being idle for 3 minutes
* Resolution: 0.01mm (0.001inch) (if thickness < 100.00mm) or 0.1 mm
* Two Points Carlibration available
* Power Supply: 2 X 1.5V AA Standard Batteries
* Working temperature: -0 C ~ +50 C
* Power supply: Battery: 2AA alkaline dry cells (2 X 1.5V)
* Dimension: 149 mm X 73 mm X 32 mm
* Weight: 168g (main unit); 30g (probe)
* The tester comes with a standard PT-08 probe, operation manual, a carrying case, a bottle of coupling paste, a calibration block (4.0mm) built in the main unit as shown in the picture and two AA batteries.
Either this 5P-10 Probe (Straight Tip) or probe PT-08 comes with standard kit
Accessories for you to choose:
PT-08 Probe (90 degree angle) to REPLACE above 5P-10 at NO extra cost
or US $79.99 if added to the package as an extra or back-up probe
DW-2 with Communication cable ($149.00 extra for cable + software)
RS-232 to USB Converter with CD Driver - you need this if your PC has only USB port, US $19.00
Five-Level (4-step) Calibration Block ($49.90) and 4mm end probe
4mm end-diameter probe with cable ($189.90) (measuring range: 0.80 mm - 22.0 mm)
Rubber Protective Case (at an extra of US $39.90)
6 Step Calibration Block in inch (at an extra of US $79.90)
* Any inquiry please email us or "Ask Seller a Question".
