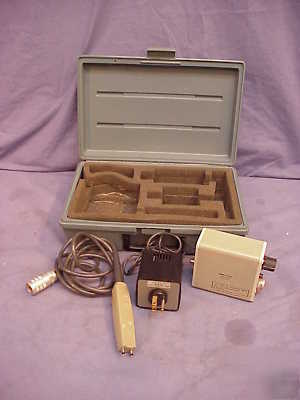

Tektronix P6046 differential probe & amplifier **tested
The P6046 is a self-contained active differential system consisting of a differential probe, amplifier and
power supply. Active FET amplifiers at the dual-inputs reduce circuit loading. Combined with the differential
processing occuring in the probe head, the P6046 provides superior common mode rejection ratios (CMRR)
at high frequencies typically 10,000:1 out to 50 kHz, derating to 5,000:1 at 1 MHz. Since the P6046 is self-contained,
it provides a differential output into a single oscilloscope channel. System controls enable you to select AC or DC
coupling, adjust the DC balance and select mV/div from 1 to 200mV (10mV to 2V with attenuator head) in
CMRR - With deflection factors of 1 to 20 mV/div: at least 10,000: 1 at 50 kHz, 5000: 1 at 1 MHz, and 1000: 1
Common Mode Linear Dynamic Range - 5 V, 50 V with 10x attenuator
Bandwidth - DC to 100 MHz (-3 dB)
Deflection Factor Range - 1 to 200 mV/div in 8 calibrated steps, 1-2-5 sequence (with an oscilloscope deflection
factor of 10 mV/div). Input RC 1 M ohm paralleled by 10 pF or less.
Input Coupling - AC or DC, selected by a switch on the probe. Low frequency response AC-coupled is -3 dB at 20 Hz,
Displayed Noise - Typically 450 mV or less.
Maximum Input Voltage - 25 V (DC peak AC), 250 V with 10x attenuation, derated with frequency.
Output Impedance - 50 ohms through a BNC-connector. 50 ohm termination supplied with amplifier for use with 1 M ohm
Probe Cable - 6 ft. long, terminated with special nine-pin connector.
