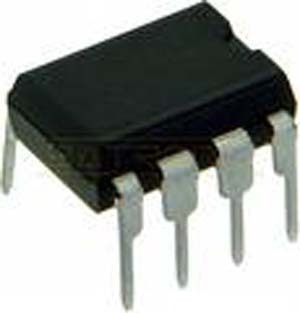

1 pc 1H5020CPA 2 channel virtual ground analog switch
1 PIECE 1H5020CPA 2 Channel Virtual Ground Analog Switch
The IH5020 analog switches were designed to fill the need for an easy-to-use, inexpensive switch for both industrial and military applications. Although low cost is a primary design objective, performance and versatility have not been sacrificed. Each package contains TWO channels of analog gating and is designed to eliminate the need for an external driver. Driven directly from low level TTL logic (5 volts). Each channel simulates a SPDT switch. SPST switch action is obtained by leaving the diode cathode unconnected; for SPDT action, the cathode should be grounded (0V). The parts are intended for high performance multiplexing and commutating usage. A logic 0 turns the channel ON and a logic 1 turns the channel OFF.
