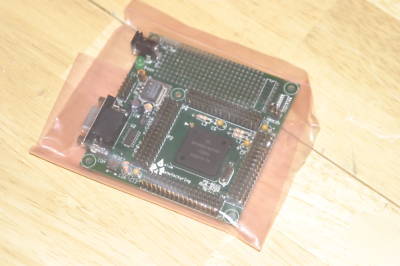

Axiom pb-0555 development board axm-0208
You know how it goes when you dream up 100 projects, but only have time for 2? Here is one of the 98 that never materialize.
To my knowledge, this has never been opened. Does not come with power supply.
Product Summary: The PB-0555 is a Motorola MPC555 PowerPC Microcontroller module with I/O pin headers, oscillator circuit, power supply and RS232 COM port. The MPC555 high integration processor architecture has been designed for high-performance and low-cost embedded control applications. The PB-0555 comes with wall-plug power supply, serial cable and support CD containing software examples and documentation. Small applications can be developed on the module and programmed into the internal MPC555 flash memory for stand alone operation. Large applications can be developed on the CME-0555 development board for use in the PB-0555. Features:
Simple Monitor/Programmer in Flash EEPROM
Single Chip or Expanded Bus Operation
All I/O and Bus to Header Connectors
4MHz Reference Crystal Oscillator
Operating power: 50ma @ 3.3V (20MHz)
Prototyping area with IC placement locations
Power PC core with Floating Point Unit Processor
40MHz Operation, software selectable
448K Bytes Flash EEPROM on chip
External Interface I/O system with 56 I/O lines or External Bus of 24 address lines, 32 data lines and 4 programmable chip selects
Queued Serial Multi-Channel Module with 2 SCI UART channels w/16 Byte FIFOs, Queued Serial Peripheral Interface
2 TPU3 Time Processor Units with 16 Channels with I/O per Unit; 9 Pre-programmed functions
2 Queued 10 Bit Analog to Digital Converters w/up to 16 input channels each, 10us conversion time, 64 result registers, selectable modes and data type
2 Controller Area Network (CAN2.0B) Modules w/TouCAN protocol 2.0 A and B, 16 message buffers with masking, Time-stamping and Bus Wake-up
18 Channel Modular I/O System (MIOS1) w/8 PWM Output Channels, Two 16 Bit Counter Modules, 2 General Purpose 8 Bit I/O Ports and 10 Double Action Submodules
Background Debug Module and JTAG
