Car laptop power supply 12V boost 10~32V 65W converter

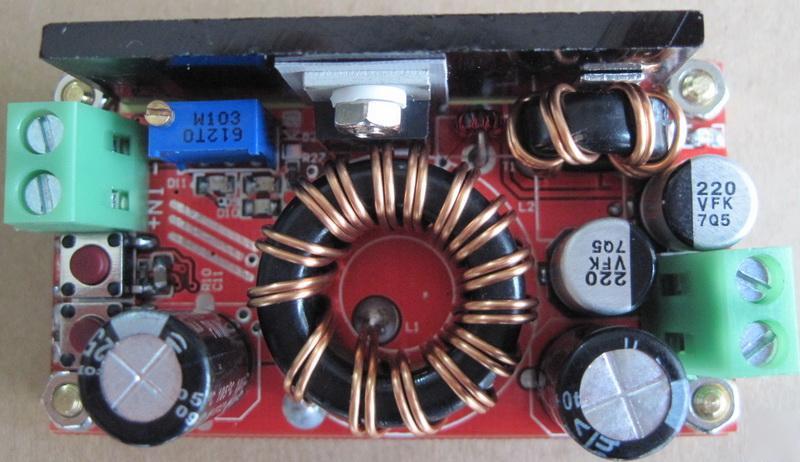

12V to 10~32V 65W High Efficiency Boost Module
* Output Voltage: DC 10~32 V ( adjustable, O/p Voltage >I/p Voltage by 1.5V )
* Maximum Input Current: 3 A ( 25W ,Under normal circumstances please 2.5A Current )
* Maximum Power: 65 W, Short 100W (less than 1 minute)
* Efficiency: 95 % ( under input 16V, output 19V 2.5A )
* Module Properties: Non-isolated step-up module (BOOST)
* Full Load temperature rise: 30
* Switching Frequency: 100KHz
* Output ripple: 25mv(max) 20M bandwidth
* No-load Current: Typical 20mA
* Voltage Regulation rate: 0.5%
* Closed current : 1mA typical
* Short-circuit Protection : Auto close
* Input over-voltage alarm : input >16.5v red LED lights( max can not exceed 18V )
* Switch mode : " Open "button, output No-load shutdown need to hold down the off button has a few seconds until the blue LED light goes out
* Input Reverse Protection: Red Led lights,then right blue LED lights
* Size: 65 x 35 x 23.5 mm ( L*W*H )
* All core components are imported from
* Imports chip capacitors and ceramic capacitors
* Effectively reduces the output ripple
* Improve the reliability of the module
* In order to improve heat dissipation, PCB board using thick copper plate, switch independent heat sink design.
* 1 x DC Power Supply Module
