New pallet jack 4400LBS 2000K - pallet truck lift -

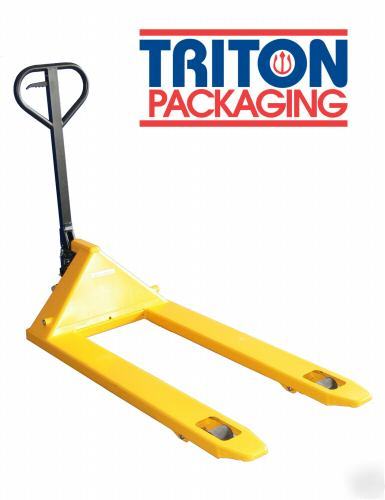

NEW - Standard Duty Pallet Truck 4400 Lbs (2000 kg)
To Move Pallets with Ease and Precision

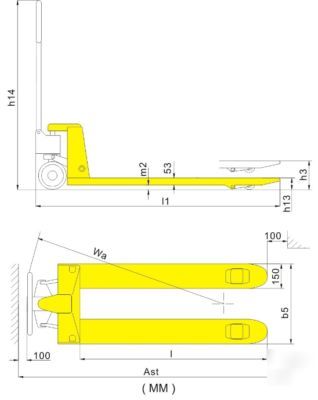

* Fork Length: 48 inches(1220 mm) (*l)
* Overall Length: 62 inches (1590 mm) (*l1)
* Fork Width: 6 inches (150 mm)
* Total Truck Width: 28 inches (685 mm) (*b5)
* Maximum Lift Height: 8 inches (190 mm) (*h3)
* Fork Height (When Lowered): 3 inches (75 mm) (*h13)
* Handle Height 45 inches (1160 mm) (*h14)
* Main Wheel Diameter: 7 inches (160 mm)
* Fork Wheel Single: 2.75 x 3 inches ( 70 x 80 mm)
* Fork Wheel tandem: 2.75 x 2.35 inches ( 70 x 60 mm)
* Turning Radius: 52 inches (1335 mm) (*Wa)
* Aisle Width for pallets 40x47 inches (1000x1200 mm) crossways: 70 inches (1790 mm) (*Ast)
* Aisle Width for pallets 30x47 inches (800x1200 mm) lengthways: 70 inches (1790 mm) (*Ast)

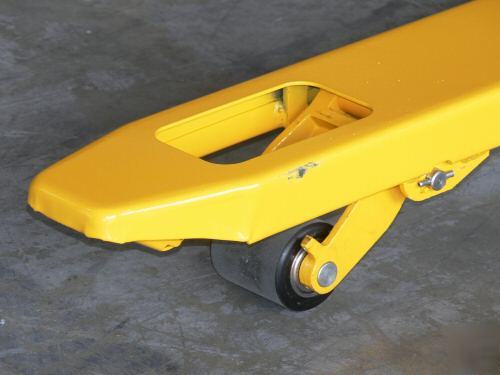

* Polyurethane Wrapped Iron Wheels
* Meets T V Rheinland / Gepr fte Sicherheit / Conformit Europ enne (TUV/GS/CE) Standards.
Package Size: 64 (1626mm) x 40 (1016mm) x 21 (533mm)
Package Weight: 134 Lbs (61 Kg)
