Schaffner NSG600 interference simulator with NSG625

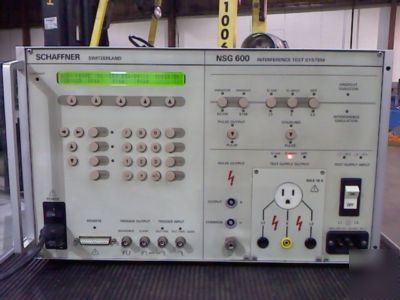

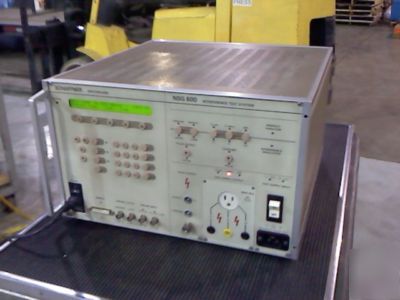

Schaffner NSG600 Interference Simulator System
The Schaffner NSG600 Interference Simulator System provides for the simulation of the most varied transient conditions which occur in AC and DC mains, but also has facilities to permit the application of transients without supply voltage. The system consists of a main frame and various plugin units which generate the specific disturbances. The basic equipment contains:

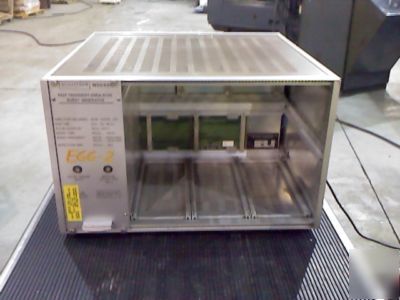

* Main frame unit with centralized power supply and control for 1 to 4 plug-in units

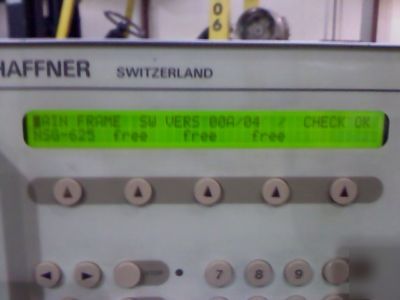

* Microprocessor controlled function keys and LCD display
* Connection to the unit under test and pulse output
* RS 232-C interface for computerized remote con
Schaffner NSG 600 Specifications:
110/220 V ( 20%) 50/60 Hz switchable on main frame, connection via 6 A equipment plug
15 to 264 VAC; 15 to 65 Hz/16A max; 65 to 500 Hz/6A max
Connection via 16A equipment plug
Decoupled against generated transient pulses being fed onto the supply network
supply voltage with the selected interference superimposed via the mains socket (country specific) and safety banana plugs
pulses without supply voltage: Fischer 5 kV coaxial socket (e.g. for data line coupling devices)
RS 232-C interface with supply for opto-link: Cannon 25 pol

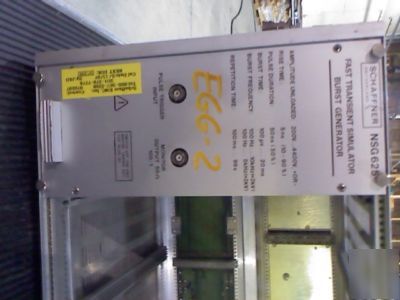

NSG 625 - Fast Transient Simulator Burst Generator Plug-in INFO BELOW:
* Exceeds IEC 801-4, VDE 0843-T4, etc.
200V to 4400V (no load); 100V to 2200V (into 50 ); adjustable in steps of 20V
selectable, positive or negative
50 ns 30% (50 , at 50%, 500 - 4000V)
for pulse amplitudes < 2000V, 0.1 to 10 kHz 1%; For pulse amplitudes > 2000V, 0.1 to 5 kHz 1%
0.1 to 20 ms 2% and single pulses
0.1 to 99 s 2% (asynchronous); 5 to 64,000 half-waves (mains-synchronous)
Synchronous: delay adjustable from 0 over the range 0 to 99 ms; Asynchronous: free-running
Via single-phase mains coupler in the NSG600; Non-symmetric coupling on L1 or L2 or E as per IEC 801-4; Asymmetric on L1 and L2 to E or, L1 and L2 and E to HF-earth
Direct pulse output for external coupling devices
