Textronix TV90 cablescout
ON THE PERFORMANCE SIDE ,THE TV90 EMPLOYS OPTIMIZED PULSING AND SAMPLING COUPLED WITH ADVANCED FILTERING AND SIGNAL PROCESSING TECHNIQUES TO ENSURE THE MAXIMUM MEASUREMENT RANGE. THAT WAY ,YOU"LL ALWAYS HAVE A CLEAN WAVEFORM FOR EASIER FAULT INTERPRETATION.
SHORT PULSE WIDTHTHE TV90 PROVIDES A 5NS PULSE WIDTH FOR CLOSE-IN RESOLUTION. FAULTS ARE NEAR AS 3FT FROM THE PEDESTAL CAN BE LOCATED WITH EASE.
1.FIND LOCATION OF DAMAGE IN DROPS.2.FIND IMPEDANCE MISMATCHES.3.LOCATE BAD PASSIVE DEVICES.4.DETERMINE LENGTH OF CABLE.5.LARGE,HIGH RESOLUTION,BACKLIT DISPLAY.6.4000-FOOT FAULT-LOCATION CAPACITY.7.75 OHM F CONNECTOR.8.SMALL PORTABLE LIGHTWEIGHT PACKAGE 2.2 LBS.
TEST SIGNAL OUT 1/2 SINEAMPLITUDE(INTO 75 OHM) 6NS PULSE: 5V. 12NS PULSE: 6V.OUTPUT IMPEDANCE 75 OHMINPUT PROTECTION 200V, DC +PEAK AC TO A MAXIMUM OF 440HZ,30 SEC DURATION.GAIN 0 TO 63 dbFILTER HIGH PASS,CUTOFF FREQ 150KHZ,PLUS AVERAGING.BATTERY OPERATION> BATTERY TYPE SIX AA ALKALINE. OPERATING TIME OVER 4.5 HOURS WITH BACKLIGHT OFF.AUTO SHUTOFF TIME OPERATOR SELCTABLE: 5 TO 30 MINUTES.

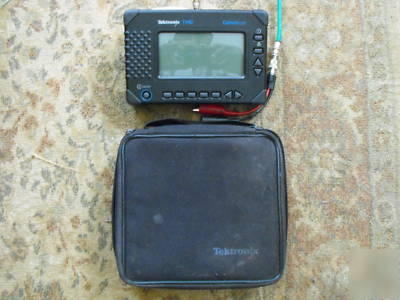

THIS ITEM COMES WITH TEKTRONIC BLACK TV90 CABLE SCOUT TDRCOAX PATCH CORDBNC-SPLIT TO ALLIGATORSOFT CARRY CASE.
