beautiful ikeda radial drill model # rm-1300 4' x 13"

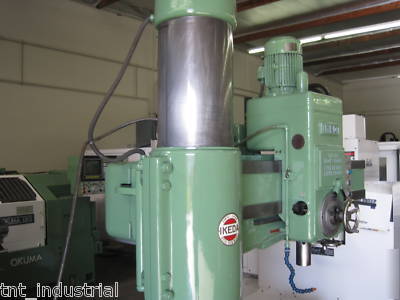

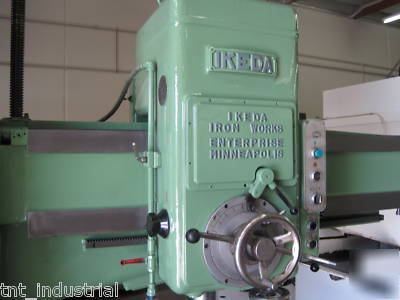

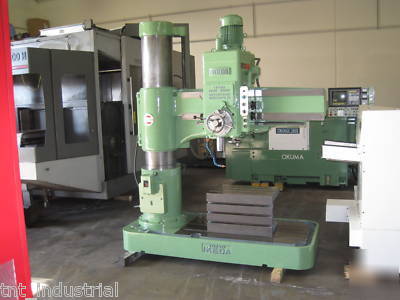

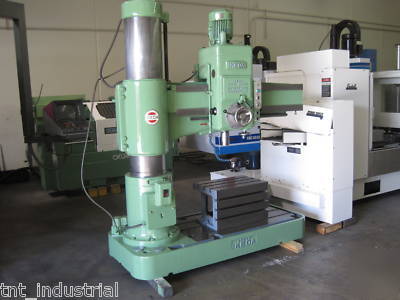

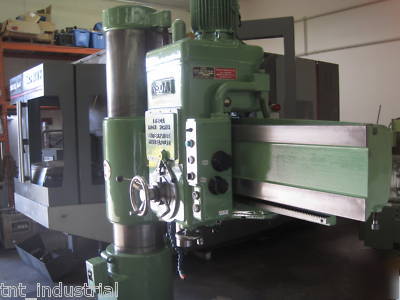

IKEDA RADIAL DRILL MODEL # RM-1300 4 x 13
* IKEDA Radial Drill, New in approx. 1978
* DIST. SPINDLE C/L TO COLUMN FACE: MIN 10-3/4", MAX 54-1/2"
* DIST. SPINDLE TO BASE: MIN 15-1/4", MAX 56-3/4"

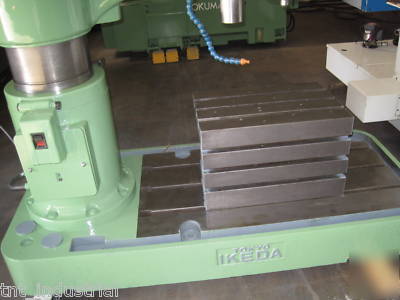

* WORKING SURFACE OF BASE 57-1/4" X 36"
* TRAVEL: HEAD ON ARM (LONG) 43-3/4", ARM ON COLUMN (VERTICAL) 29-1/2"
* DRILLING CAP. (MILD STEEL) 2-1/2"
* TAPPING CAP. (MILD STEEL) 1-3/4"
* SPINDLE: TRAVEL 12", DIAMETER 3-5/8"
* SPEEDS (12) 30-1440 RPM, FEEDS (4) 0.004"-0.21"/REV., TAPER NO. 5 MT
* OVERALL DIMENSIONS (APPROX) 86" X 44" X 93"H
* WEIGHT (APPROX) 7,700 LBS.
* POWER CLAMPING TO ARM AND HEAD
