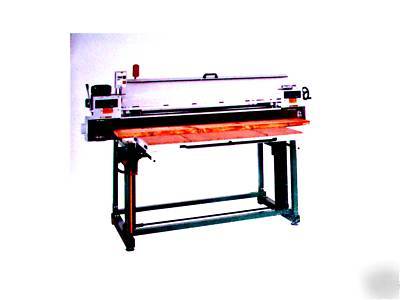

Accura 01560 6" x 186" 3 hp 220V stroke sander
ACCURA 01560 6" x 186" 3 HP 220V STROKE SANDER
If you make doors, cabinet doors and face frames, this 6" X 186" Stroke Sander is for you.
You can custom sand by applying just the right amount of pressure just where you need it by sliding the work table forward and backward and sliding the graphite platen left and right.
When you need a large capacity edge sander, this machine can convert in seconds and has a 69" long graphite coated platen.
Also features ball bearing table guides and platen guides, two 4" dust ports, well placed magnetic switch that swivels left or right for optimum positioning, adjustable work stops and handwheel belt tensioning.
There is even a motor brake for safety and quick set-up transitions.
This sander is a welcome addition to any custom woodworking shop.
Accepts standard 6" x 186" sanding belts.
Motor: 3 HP, 220V, single-phase, 18 Amps, 1725 RPM
Table size: 59-1/16" x 23-5/8"
Table vertical travel: 21-5/8"
Platen horizontal travel: 50-3/4"
Maximum Length for Work Piece 78-3/4"
Minimum Thickness for Work Piec 5-1/2"
Overall size: 98" x 47-5/8" x 67-1/2"
Handles HEAVY stock removal and FINE finishing!
* Manually Operated Table Elevation
* Fully Adjustable Belt Tracking and Tension
* Sanding belt rotates 90 for edge sanding
* Pedestal mounted magnetic switch
