Accuweb accuguide web guide w/ accubeam 3

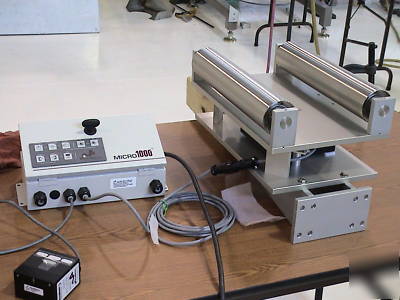

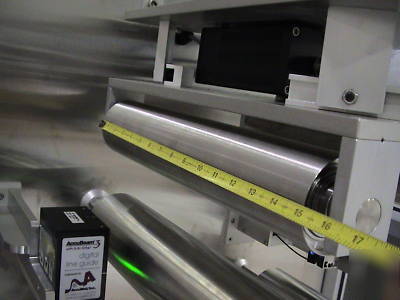

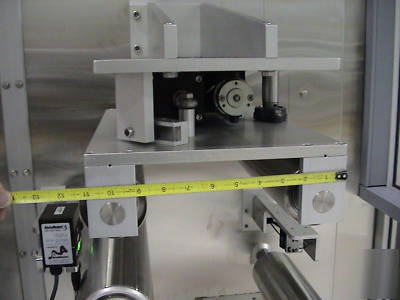

For sale is an AcuuWeb AccuGuide model 151002 PDG-PS, This web guide is like new, it was purchased and mounted on a machine but was only used for a few test cycles. We originally paid $5950. We can forward you the quote if needed. Please see complete equipment list below.
* 1 CTL 1000-04 Micro 1000 microprocessor based controller with PWM motor AC-4769
drive mounted in an IP66 rated enclosure.
* 1 P/E 5100-01 AccuBeam 3 Digital line & edge guide sensor with integral AC-6844
LCD display, function switch pad, and 18" cable
* 1 CAB 9800-01 11.5' serial I/O cable assembly. For P/E, RWW, RGP, RLG.
* 1 MX-.5 7210-01 140-watt, 0.5" stroke maximum switched linear actuator AB-3506
* 1 CAB 8600-04 12' MA/MX actuator cable assembly.
* 1 CAB 7700-03 12' remote switchpad cable assembly.
* 1 MAN 0002 Instruction Manual, Micro 1000, Current Revision
* 1 Q27799-1 AccuGuide model 151002 PDG-PS positive displacement web
guide assembly, R-L standard configuration, including:
(2) 3" diameter x 15" roll face passivated 316 SST idler rollers
(4) AccuWeb linear bearing assemblies.
(1) Micrometer adjust AccuBeam 3 mounting bar assembly
(1) Cantilever mounting bracket with attached switchpad.
* 1 AUX 9248-02 PLC I/O card for the Micro 1000
For questions please email us at purchasing.****@fargoautomation.com
This is being sold for Fargo Automation Inc.
