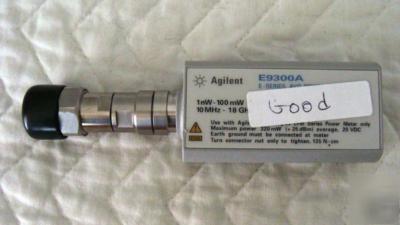

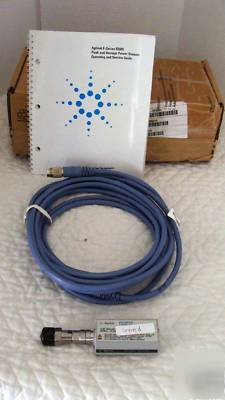

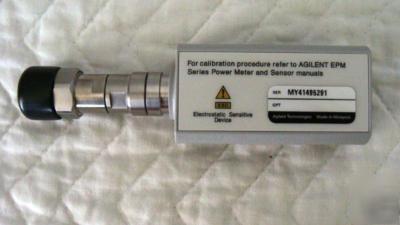

Agilent - hp E9300A power sensor w/cable & extras
The Agilent E9300A Avergae Power Sensors measure RF and Microwave signals regardless of modulation format. These power sensors measure complex digital modulation formats including those used in today's wireless communication, satellite and cable TV systems; at both low and high power levels. The same power sensor can also be used to measure multi-tone and continuous wave (CW) signals.
HP/AGILENT E9300A FEATURES: *** Measure the average power of all modulation formats *** Wide dynamic range (-60 dBm to +20 dBm) and frequency range 10 MHz to 18 GHz *** High maximum power specification *** Low SWR for reducing mismatch uncertainty *** Calibration factors, linearity and temperature compensation data stored in EEPROM *** Fast measurement speeds (up to 400 readings per second with the E4416A) *** Compatible with EPM, EPM-P and P-series power meters.
I DO NOT KNOW WHEN THE LAST CALIBRATION WAS DONE ON THIS SENSOR. I BELIEVE IT WAS 2005.
