Mabuchi fc-280 motor - 6 to 16 vdc - 10310 rpm - 12 vdc

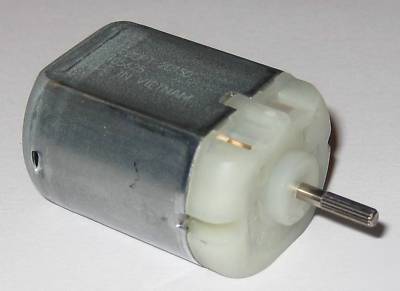

Mabuchi FC-280 Motor - 6 to 16 VDC - 10310 RPM - 12 VDC
* Operates on 12 VDC nominal
* Full load (maximum efficiency @ 12VDC) performance characteristics:
* Torque: 42.2 g-cm (4.14 mN-m)
* Power output: 4.47 Watts
* Stall torque: 335 g-cm (32.9 mN-m)
* Stall current: 3.90 Amperes
* Dimensions (not including shaft): 30.5 mm long x 24.2 mm wide x 18.3 high
* Splined shaft dimensions: 9.8 mm long x 2.0 mm diameter
* Push-in style terminals on shaft extension end of motor
* Applications: Automotive power mirrors, door locks, etc.
