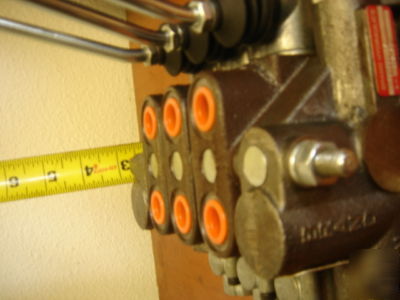

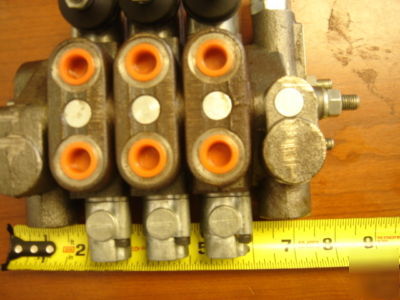

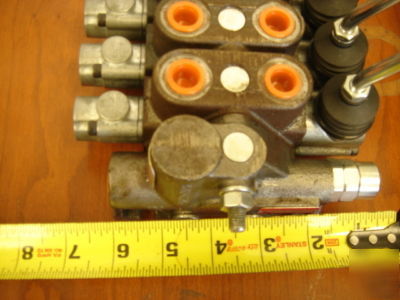

New 3 spool tandem center four way with metering

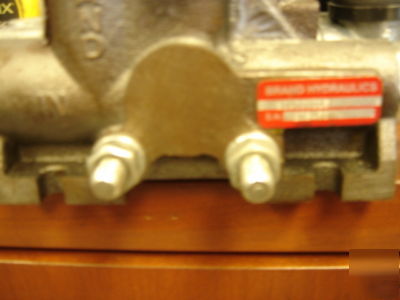

The Brand, Series 20 Sectional Directional Control Valves
When assembled in their normal manner the series 20 spool sections are in parallel. When the spools are in neutral position, the flow passes by each spool and then onto the tank (outlet) port. If two or more spools are shifted simultaneously their work ports are in parallel. The oil flow will take the path of least resistance allowing lighter loads to move first. All spools are machined with metering chamfers, and have a high "handle vs. spool" movement ratio, resulting in good metering capability. Input flow can be divided among several circuits (spool sections) by feathering the spools.
THE BRAND SERIES 20 CAN BE ASSEMBLED UP TO 6 SPOOL S
SPRING CENTER-RETURNS HANDLE NEUTRAL WHEN HANDLE IS RELEASEDECTIONS.
* 400 psi (27 bar) max tank pressure.
* 6 sections max (consult factory for more).
* 10 Micron Filtration Recommended.
* Assembly Torque = 85 inch-lbs.
* Inlet/outlet #6SAE (9/16-18).
* Work Ports #6SAE (9/16-18).
Thay work on duble acting cylinders.
ALL VALVES ARE NEW AND HAVE BEEN IN STOCK FOR YEARS. THAY MAY HAVE A SMALL AMOUNT OF RUST.
