Mazak quick turn 40/1500 2 axis cnc lathe

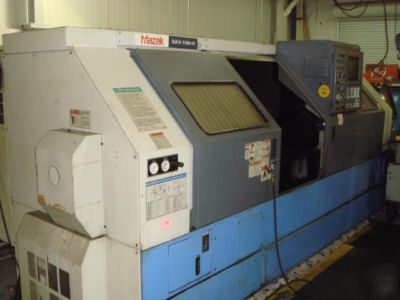

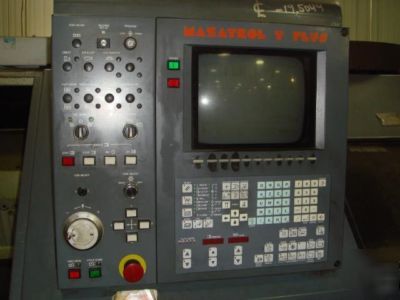

1-MAZAK QUICK TURN 40/1500 2 AXIS CNC LATHE
DATE OF MFG. 06/98 INSTALLED 1999
MAX. SWING OVER CARRIAGE X-AXIS SLIDE WAY 15.75"
STANDARD MACHINING DIAMETER 12.6"
MAX. MACHINING DIAMETER 15.75"
MAX. WEIGHT OF WORK PIECE CHUCKING 11.81 LBS
MAX. WEIGHT OF WORK PIECE BETWEEN CENTERS 47.24 LBS
SPINDLE THRU HOLE DIAMETER 3.15"
(3 SPEED GEAR BOX) LOW 6-586 RPM
SPINDLE SPEED CONVERSION NUMBER AUTOMATIC INPUT
DIRECT COMMAND PER 1 RPM (CONSTANT SURFACE SPEED PERMITTED)
MAIN SPINDLE MOTOR HP 30 MIN 40 HP/ CONTINUOUS 30 HP
INDEX TIME DOWN 2.8 SEC/FULL STEP
TURRET CLAMPING FORCE 11,686 LBS
SHANK TOOL SIZE RIGHT HANDED OUTER DIAMETER .98" X 1.26" X 5.91"
SHANK TOOL SZIE FOR INNER DIAMTER 1.97"
DIAMETER OF HIGH INDEX COUPLING 14.17"
X AXIS RAPID TRAVERSE RATE 472.44 IPM
Z AXIS RAPID TRAVERSE RATE 708.66 IPM
DIAMETER OF TAILSTOCK SPINDLE 3.94"
TAPER OF TAILSTOCK SPINLDE HOLE #5 MT
MAXIMUM THRUST OF TAILSTOCK SPINDLE 2,205 LBS
TYPE OF TAILSTOCK SPINDLE CENTER IS LIVE
TRAVEL OF TAILSTOCK QUILL 5.12"
CLAMPING FORCE TO LATHE BED 22,050 LBS
POSITIONING X AXIS .0004" OVER 3.94"
POSITIONING Z AXIS .0006" OVER 11.81"
REPEATABILITY X AXIS +/- .00012"
REPEATABILITY Z AXIS +/- .00016"
DIMENSIONS 74.41" TALL X 80.6" WIDE X 166.54" LONG
WITH CHIP CONVEYOR MACHINE IS 208.66" LONG
TOTAL APPROX. WEIGHT 12,568 LBS

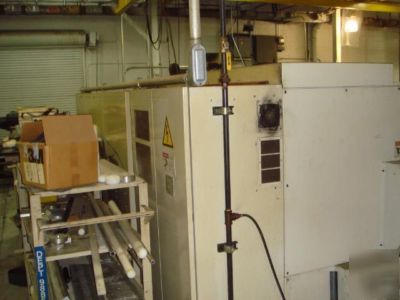

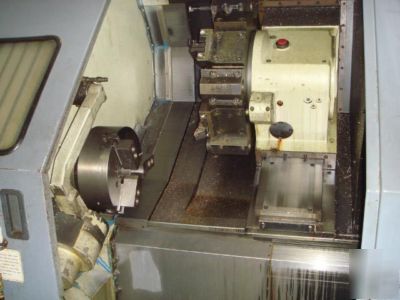

12" KITIGAWA B12 3 JAW HYDRAULIC CHUCK
MACHINE MOUNTED HYDRAULIC UNIT
