Onsrud inverted router with vacuum hold system
SPECIFICATIONS: THIS IS A MODEL 2003 C.R. ONSRUD INVERTED ROUTER, THE MOST VERSATILE, EASY TO OPERATE PIN ROUTER AVAILABLE.
* CAST IRON FRAME AND SPINDLE MOUNT SLIDES FOR A VERY RIGID AND ACCURATE MACHINE.
* TABLE IS 24" x 36" ACRYLIC TOPPED PHENOLIC WITH DUST COLLECTION CHAMBER
* MOTORIZED SPINDLE. 22,000 RPM, 3 1/4 H.P. COMMERCIAL DUTY PRODUCTION ROUTER MOTOR. 120 V., 1 PH.
* RAISED AND LOWERED BY MECHANICAL FOOT PEDAL.

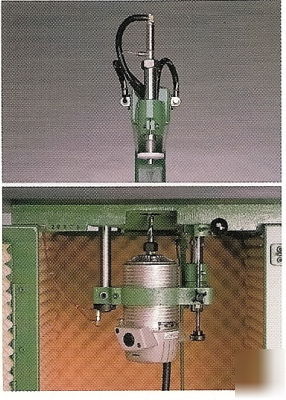

* GUIDE PIN ASSEMBLY EXTENDS AND RETRACTS AUTOMATICALLY BY PNEUMATIC CYLINDER CONTROLLED BY SPINDLE FOOT PEDAL. FOUR GUIDE PEN SIZES: 1/4 TO 1/2"
* UPPER AND LOWER DEPTH STOP ADJUSTABLE THROUGH ENTIRE RANGE OF SPINDLE TRAVEL.
* THREE POSITION TURRET DEPTH STOP ALLOWING ADJUSTABLE CUTTING HEIGHTSWITH SIMPLE MOVEMENT OF A LEVER.
* REQUIREMENTS: DUST COLLECTION 200 DFM, COMPRESSED AIR: 100 PSI,.5 CFM,
* THE EXHAUST SYSTEM IS CHAMBERED THROUGH THE TABLE GRILL TO THE REAR OF THE MACHINE TO THE SHOP VACUUM DUST COLLECTION SYSTEM.

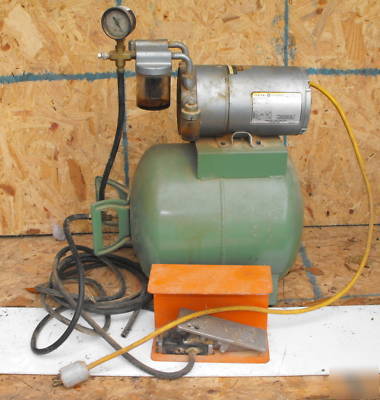

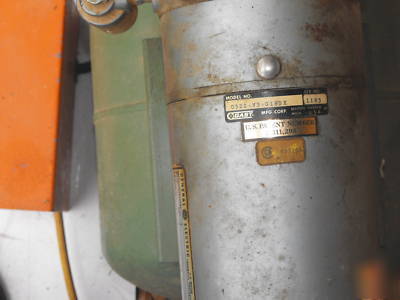

* GATES VACUUM PUMP IS USED TO HOLD WORK PIECE UNDER THE PIN PATTEREN BOARD. GE 1/4 HP, 120VAC MOTOR WITH FOOT SWITCH.
* With the model 2003 you an prodauce better quality wok up to ten times faster than with a hand router, band saw, or scroll saw. The 2003 router is more versatile than convntional table routers. The cutter is below the table when not cutting. It allows plunge work and keeps chips out of the motor for greatly increased life. Simple templates allow all types of complex shapes internal cut outs, slotting, hole boring, mortise cuts, and shaping. THE VACCUM SYSTEM HOLDS THE PROJECT WORK PIECE WITHOUT FASTNERS. A safety feature as well as non-marring of project.
