Rebuilt hardinge hlv-h toolroom lathe. reground bed

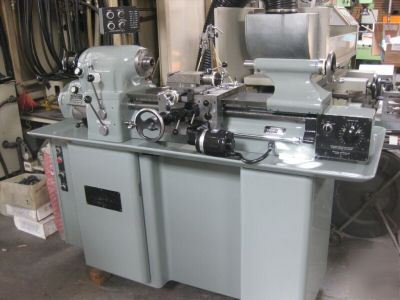

Rebuilt Hardinge HLV-H Toolroom Lathe
This particular machine has a newly re-ground bed and completely re-aligned. The cross-slide has been re-scraped and re-fitted. New leadscrew on the cross slide and new belts for the head. Various other small parts have been replaced and everything on this machine is in 100% working condition and it comes loaded with all the bells and whistles outlined below. Feel free to contact us with any further questions regarding this beauty.
Hardinge HLV-H Rebuilt Toolroom Lathe
Swing over bed 11"
Swing over carriage 9"
Distance between centers 18"
Swing over cross slide 6"
Spindle thru hole 1.25"
Variable spindle speeds 125-3000 rpm
Spindle nose Hardinge taper
Compound slide travel 3"
Power Feed range 1/4" to 7 ipm
Tailstock spindle diameter 1-3/8"
Tailstock spindle travel 3.75"
Imperial Thread range 11-108 tpi
Overall dimensions 68"x 30" x 58"H
Machine weight 1700 lbs
Re-Scraped & fitted cross slide
