TDA2030 ic amp audio 18W hi-fi pentawatt 6PCS [ZA74]

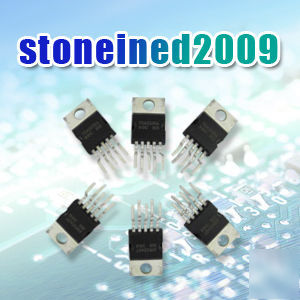

TDA2030 TDA2030A IC Amp Audio 18W HI-FI Pentawatt,6pcs [ZA74]
TDA2030ZA74.jpg za74 picture by hpstore2008
The TDA2030A is a monolithic IC in Pentawatt package intended for use as low frequency class AB amplifier with VS max = 44V. It is particularly suited for more reliable applications without regulated supply and for 35W driver circuits using low-cost complementary pairs. The TDA2030A provides high output current and has very low harmonic and cross-over distortion. Further the device incorporates a short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.
* Features:Hi-Fi Audio Amplifier
* Max Power Output x Channel: 14W x 1@4(ohm)
* Output Type: 1-Channel,Mono
