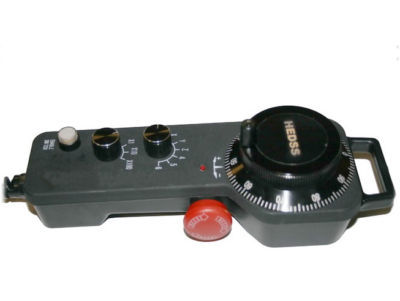

2080 manual hand wheel pulse encoder cnc machine tool
Manual Hand Wheel 100p/r Pulse Encoder Cnc Machine Tool Mill Router manual Control
Suitable for manual pulse input type such as NC or Milling machinery
High reliability, terminal connection type
Power supply: 5V DC, 12V DC
Industrial tooling machinery
1. ELECTRICAL SPECIFICATIONS
A). Output wave: Square wave
B). Output signals: A, B, (Line driver output A, A, B, B phase)
C). Current consumption: 100mA
D). Response Frequency: 0~20KHz
E). Output phase difference: 90*
F). Supply voltage: 5V DC, 12V DC
G). Signal level: IVH 85%Vcc, VL 0.3V
H). Number of pulses: 100 (Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage
2. MECHANICAL SPECIFICATIONS
A). Signal position: 2 kind
B). Speed without sealing: 500rmp
C). Starting torque without sealing: 2.0x 10-2~6.0x 10-2Nm (+25*C)
D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
F). Working life: MTBF 10000h (+25*C, 2000rpm)
G). Weight: Appraisal 740g
3. ENVIRONMENTAL SPECIFICATIONS
A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -30*C~85*C
C). Working temperature: -10*C~70*C
D). Protection class: IP54
* 1 x Hand Wheel Pulse Encoder
