> Cobra series model iii semi-automatic stretch wrapper
Cobra series model iii semi-automatic stretch wrapper

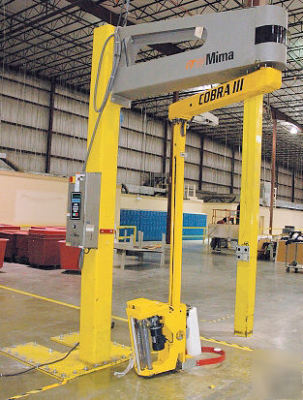

This listing is for a lightly used, excellent condition ITW Mima Model Cobra III Semi-Automatic Rotary Arm Stretch Wrapper.
Cobra IIIC ompact design uses little floor space
O verhead spiral wrapping for unstable loads
B uilt rugged for industrial environments
R eliable UL listed microprocessor controller
A ccu-stretch prestretch for film economy
Whatever your load type, whatever your mounting configuration, you can count on the Cobra III semiautomatic stretch wrapping machine to get the job done. The Cobra III was designed specifically for loads that can't be moved or rotated during wrapping because of their instability or shape. The Cobra is perfect for loads that are light, fragile, extra heavy or unstable. During the wrapping cycle, the load remains stationary while the film carriage rotates around it . Even 'C' type loads are easily unitized with a tight, even web of prestretched film.
The Cobra III comes equipped with the patented ACCU-STRETCHTM I powered prestretched film delivery system for optimum in film economy. Stretch film is elongated between two specially textured power driven rollers before being wrapped around the load. The standard prestretch rate of 250% is fixed to avoid operator tampering and assure consistent wrapping results, day after day. Higher or lower stretch levels are available to fit your particular application. For the best results, use ITW Mima AccuWrapTM premium grade stretch film. AccuWrap has the superior strength and load holding power required when using powered prestretch systems.
Because loads are stationary during wrapping, throughput speeds can be higher than most turntable systems would allow. At 12 RPM, the Cobra III can wrap a 48" wide x 48" long by 80" high load in less than 45 seconds. You can increase the throughput even further by mounting the Cobra III on the ITW Mima dual powered wrapping stand which lets you wrap one load while a second load is being staged.
* Microprocessor controller with membrane touchpad is easy to use and very reliable.
* Independently adjustable carriage up & down speeds can reduce film consumption.
* NEMA 12 electrical controls in UL listed enclosure for safe operation.
AccuStretch I film delivery system
* Angled carriage delivers film to within 2" of floor.
* AccuStretch I drive: DC motor, sealed gearbox for greatest reliability.
* Fixed ratio 250% film prestretch: consistency of film stretch, prevents operator tampering.
* Convenient panel knob for film tension.
* 6" Mainframe extension to wrap 80" diagonal.
* Tower extension for loads 92", 104" & 110".
* Polarized photo eye / reflector pole.
* Cold pack for temperatures 40 F to 20 F.
* Splash / dust package for harsh conditions.
* Fixed prestretch rates from 100% to 300%.
* Roping roller sets for film banding.
* Special programming for custom wrap cycle.
* Netting capabilities with remote tension.
* Custom paint color or paint type.
* Non-standard operating voltage.
Rotary Arm Series The Cobra Overhead Series contains both semi-automatic and automatic models. These stretch wrappers, using an overhead rotary arm, are ideally suited to handle unstable, very light or very heavy loads. Pallets can be placed on the floor, allowing weights up to the floor's capacity. The load remains stationary while the arm and film carriage rotate around it applying the wrap.
NOTES: This unit has the optional height and mainframe extensions added to it.
Original Brochure can be viewed at:
http:// /marketing/images/vendorlit/mima/cobra-iii.pdf
