New 10 ton portable horizontal press bender must see
NEW 10 TON PORTABLE HORIZONTAL PRESS BENDER MUST SEE!!

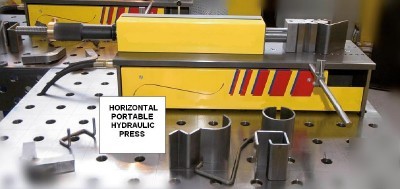

This new hydraulic bender is particularly small and light - and as a result, mobile.
NEW 10 TON PORTABLE HORIZONTAL PRESS BENDER
Please call our sales office for complete details and specs on this machine (***) 772 7869
The machine weight of this hydraulic horizontal bending press is only 180 lbs. The bender is easy to transport, for example on a building site, because it is only 31-1/2" long and 10" high and wide.
Despite its handy dimensions, the horizontal bender can press 10 tons. This corresponds to a bending capacity of 4" wide x .60" thick for solid steel. A stop, which can be easily positioned, makes it possible to achieve a bending accuracy in the 0.1 mm range. The hydraulic equipment is always set up separately and connected to the press via 2 quick-release mechanisms.
The greatest advantage of this bender is that it presses into the die with the punch. This is not usually the case for small machines. In order to bend a closed part, the possibility exists of exchanging the punch with another die.
