Sencore all format vcr analyzer #VC93

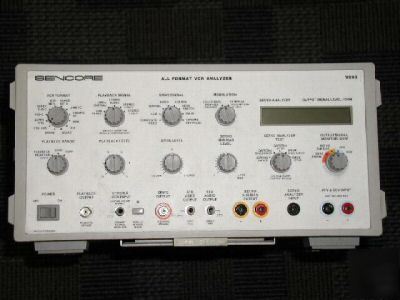

Sencore All Format VCR Analyzer #VC93
Used equipment in very good physical condition
* Includes VC93 simplified operating instructions
* Dynamic VCR head signal substituter for all formats
* Exclusive Hi-Fi Stereo all-format head signal substituter
* Innovative VCR luminance, chroma, and audio analyzer
* Stand-alone analyzer or companion to the VG91 Universal Video Generator
* Automatic servo analyzer (patented)
* Obsolete-proof and expandable
* Complete all-format troubleshooting tool includes:
- Standard video & audio line outputs
- Autoranging DCV and PPV meter
* Formats - VHS, Super VHS, VHS-C, Super VHS-C, Beta, Super Beta, U-MATIC, U-MATIC SP, 8mm, Hi-8, plus update capability.
* Playback Signals - (For substituting before detectors) LUM (FM MOD): FM luminance-only portions of signals selected by VCR FORMAT switch. LUM AND CHROMA: FM luminance and chroma signals selected by VCR FORMAT switch. STEREO AUDIO: FM Stereo audio signals corresponding to VCR format selected by VCR FORMAT switch. STEREO R ONLY: Right channel only FM Stereo audio signals. STEREO L ONLY: Left channel only FM Stereo audio signals.
* Playback Output Level - Continuously variable to 5 VPP in three ranges.
* Chroma Lock - Phase-locks VC93 to the VCR to produce locked color. Input signal: SW30 from VCR. Input signal level required: Greater than 1 VPP. Chroma phase select: 0 or 180 degrees. Lock light: Lights when proper signal type and level received.
* Drive Signals - All drive signals phase-locked to modulation source selected by the MODULATION switch. Signals Available: Composite Video, Luminance, Chroma, Audio, 3.58 MHz, Headswitch, SW30, and Chroma Key Pulse.
* Drive Output Level - Continuously variable from -10 to +10 VPP. Frequency Response: Flat out to 4.5 MHz.
* Modulation - Internal: Split field color bar pattern. Upper portion: 75% white, yellow, cyan, green, magenta, red, blue, and black. Lower portion: 100% white, black. Audio tone: 1 kHz sinewave. External: VG91 or VA62 Video Analyzer through 15 pin Sencore interface cable.
* Servo Analyzer Tests - All servo tests results displayed as percentage indication to 0.01% resolution and GOOD/BAD indication. TESTS AVAILABLE: Servos Locked, Capstan Speed, Capstan Jitter, Drum Speed, Drum Jitter.
* Servo Sub Bias - Continuously variable from 0 to 10.0 VDC current limited to 1 amp. Voltage Resolution: 0.01 V.
* Standard Video Output - Level: 1 VPP 10% into 75 ohms. Impedance: 75 ohm 10%.
* Standard Audio Output - Level: 400 mVRMS 150 mV into 10 kohm load. Output Impedance: Less than 1 kohm.
* External Meter - DC Voltmeter: Autoranging in three ranges - 0.001 to 199.9V. Accuracy: 0.5% 2 digits. Peak-To-Peak Voltmeter: Autoranging in three ranges - 0.001 to 199.9V. Accuracy: 1% 4 digits at 1 kHz. Frequency Response: 0.001 to 19.99V - 15 Hz to 5 MHz 1 dB; 20.0 to 199.9V - 30 Hz to 1 MHz 1 dB.
* General - Power: 105-130 VAC, 60 Hz. Size: 7" x 14" x 16.7" (17.9 x 35.8 x 42.5 cm) HWD. Weight: 15 pounds (6.8 kg). Digital Meter: 3 1/2 digit LCD readout for OUTPUT SIGNAL LEVEL/DVM plus 3 digit LCD readout for SERVO ANALYZER test.
* Unit powers up and display works, but is untested.
