Steel shaft 1-5/8" & 1-7/8" with threaded hub 10-5/8"
This is for 1 new old stock shaft and hub. These appear to be a custom part made machinery processes. But, could be used for all kinds of projects.
Machined steel shaft is 1-5/8" on one side of the hub and 1-7/8" on the other side. The 1-5/8" is the long side and measures about 6" from tip to hub. The 1-7/8" side is about 3" to hub.
Hub is cast steel and machined on one side, machined side faces the 1-7/8" shaft. Hub is 6-7/8" diameter and .625" thick. It has three counter-sunk holes evenly spaced. From hole center to center is 4.90" approx. and on a 5.667" diameter approx. Also has three other threaded holes at the same measurements, 1/2" bolt thread.
On the end of the shaft it is stampped 5T 89 and 97 . On the hub it is cast 8336 C-32 and A 2.

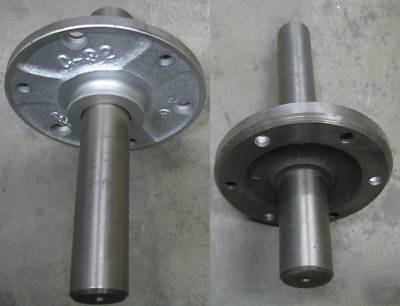

Photo shows same part with two different views.
