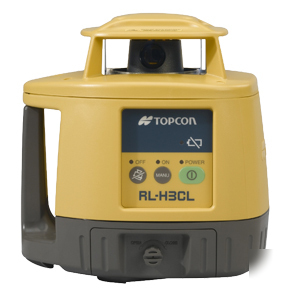

Topcon rl-H3CL longrange autorotalaser w.ls-70C sensor
Topcon RL-H3CL Long-Range Self-Leveling Automatic Rotary Laser with LS-70C Sensor & Holder 6
Topcon Long-Range Automatic Laser - RL-H3CL
With its 600 rpm rotation speed, accuracy of 10 arc seconds and 820e beam radius, the RL-H3CL is an excellent transmitter for machine control operations. It will operate up to 60 hours on four C-size batteries, has fully enclosed optics and is fully ready for any jobsite environment.
* Long 820ft.(250m) operating radius
Accuracy* Horizontal/Vertical: 10" arc seconds, 1/16" inches @ 100'
* Repeatability: 6" arc seconds
* Temperature Drift: 1"/C arc seconds per degree C
* Type: 650 nanometers, visible diode
* Power: II class, 0.9 miliwatt
* Diameter: 1640 ft, 500 meters
* Mechanical System: Full automatic w/optical-electronic vial sensor
* Source: 4 C-Size Alkaline standard, N/A
* Aproximate Battery Life: 60 standard hours, N/A
* Operating Temperature: -20 to +50 Celsius, 4 to +122 Fahrenheit
* Water/Dust Resistance: IP56 IP rating
* Dimensions (LxWxH): 6.5" x 7.1" x 7.4"
* (4) 'C' Alkaline Batteries
* (1) Hard Shell Carrying Case
* (1) LS-70C Sensor & Holder 6
Retails for $1,195.00 Our Price $985.00
Are you looking for a general construction laser that is extremely easy to setup and increases productivity for the best possible price? With the RL-H3C series you have found the new standard for construction lasers! You start working by just turning the power switch ON .
It s fully self-leveling, no more bubbles, no more footscrews! In addition the RL-H3C series is compact and rugged designed to withstand the harshest construction environment. It s your ultimate leveling tool for all standard laser applications !
The RL-H3C, CS and CL are compact and rugged designed to withstand the harshest construction environment. It s your ultimate leveling tool for all standard laser applications!
Topcon RL-H3C is ideal for all job site leveling applications and provide enormous benefits to users compared with conventional optical leveling methods. For single grade work, an optional grade plate adapter is available to manually set or match single grade slope.
In addition the RL-H3CS has a manual grade matching function, which is perfect for remodeling jobs, driveways and landscaping.
The RL-H3CL offers all the features of the popular and jobsite proven RL-H3C with added accuracy and long-range capability. All at an affordable price!
The RL-H3C comes with the LS-70C hand detector and the new bracket Holder-6. The LS-70C is not only rugged and accurate, it s also very user friendly. With a large display on the front side, the grade indication is displayed via 5 channels. And in addition, it tells you which direction the beam was last seen.
In addition the RL-H3C is compact and rugged designed to withstand the harshest construction environment. It is your ultimate leveling tool for all standard laser applications.
The RL-H3CS has a manual slope function, that when turned on the RL-H3CS can match existing slopes up to 10%, while the cross-axis self-leveling provides out of level protection for the opposite axis. Perfect for remodeling jobs.
The LS-70 is not only rugged and accurate, it s also very user friendly. The LS-70C has a large display on the front side, which displays the grade indication via five channels. The LS-70B has a large display on both sides, which indicates 11 channels of grade information. And in addition both handheld receivers tells the user which direction the beam was last seen.
With the Height Alert function, the RL-H3C series can be set such that it will not re-level in case the set up is disturbed! This prevents you from costly re-work or production errors!
foundation/footing concrete
Driveways and remodeling jobs
Any place where contractors use optical levels!
