coherent fap fiber coupled 808NM laser diode system

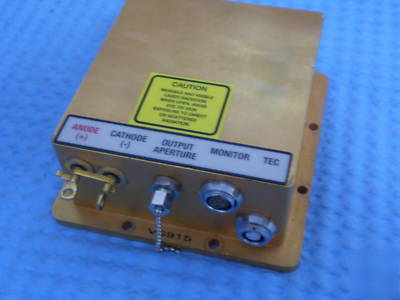

COHERENT FAP FIBER COUPED 808nm LASER DIODE SYSTEM
THESE UNITS ARE SELF CONTAINED AND PELTIER COOLED, THEY HAVE A STANDARD SMA SCREW CONNECTOR WHERE YOU SCREW YOUR FIBER OPTIC CABLE IN.
THESE ARE VERY HIGH PRECISION STABLE LASER DIODE SYSTEM USED MAINLY IN MEDICAL SYSTEMS AND MAKE VERY NICE PUMP DIODES FOR HIGH POWER GREEN 532nm DPSS LASER SYSTEMS.
THE FOLLOWING DATA IS FROM COHERENT, USA.
The integrated FAP bar offers new possibilities for OEM products. The FAP-I consists of a standard Fiber Array Packaged bar mounted in a user-friendly, environmentally sealed package that provides a complete set of commonly required accessories.
The FAP is mounted on a set of thermal electric coolers (TECs). The TECs allow high-resolution temperature control, regardless of the operating power of the FAP or the environmental temperature. Thermistors on the laser diode and the base plate monitor operating temperatures. A monitor photodiode completes the user interface.
The FAP-I incorporates an onboard EEPROM to allow users to customize the device for their system. You can choose to write, and later read back, voltage-current characteristics, serial numbers, operating hours the possibilities are endless.
The FAP-I package is carefully sealed to protect the laser diode, even if you run the device in humid environments. The laser diode electrical connections are back-bias protected and electrically isolated from the external package. This package is easily integrated into rugged applications.
THIS SYSTEM CAN BE USED FOR OTHER APPLICATIONS LIKE BURNING, CUTTING, ENGRAVING SURFACE MOUNT SOLDERING, ETC.
AS WITH ALL OUR ITEMS LISTED, IT S A GOOD LASER, NOT A DAMAGE UNIT. ONE, IT PRODUCES RATED OUTPUT AT RATED CURRENT.
THESE ARE GOOD FOR 15000 PLUS HOURS, PROVIDING THAT S IT S NOT OVERDRIVEN, OR OVERHEATED OR ESD DAMAGED.
OPERATION VOLTAGE: 3.5 - 4.5 VOLT DC
OPERATION CURRENT: 8 35 AMPS
BUILD A SERIOUS GREEN 532nm DPSS LASER OR SOME OTHER USES ARE NIGHT VISION LIGHT SOURCE, PLASTIC WELDING OR CUTTING, ENGRAVING, SURFACE MOUNT SOLDERING.
IF YOU WANT TO BUILD A GREEN DPSS LASER OF SERIOUS POWER, THIS IS WHAT YOU NEED FOR A PUMP DIODE.
THIS UNIT IS TESTED AND GUARANTEED .
A CLEAN REGULATED CONSTANT CURRENT POWER SUPPLY OR A LASER POWER SUPPLY SHOULD BE USED TO POWER THIS LASER DIODE.
Now for the standard scary warnings and such:
1) You Are over 18 and know the potential hazards inherent in high power laser equipment. THERE ARE NO "OOPS THAT WAS BRIGHT" SECOND CHANCES WITH THIS LASER! A single careless glance into the beam or its reflection WILL PERMANENTLY BLIND YOU FOREVER! To the eye the scattered output looks as bright as a red laser pointer, but that same "weak looking" beam will light a piece of news paper on fire in about 1/4 of a second!
3)The energy is sufficient that this laser will damage and render useless sensitive items like photo detectors, most non-thermal laser power meters, and security cameras from direct exposure to the beam.
4) The energy is sufficient that the beam will cause a severe burn if you get zapped by it, and is of sufficient power that a fire hazard could exist. DO NOT use near flammable materials!
5)You WILL use this device in a safe and sane manner for a legal purpose.
6)You know the electronic safety precautions necessary with this item and therefore accept the working on arrival warranty.
DANGER THIS IS A CLASS 4, 12 WATT C/WAVE 808nm FIBER COUPLED LASER DIODE VISIBLE AND/OR INVISIBLE LASER RADIATION
