Watkins-johnson M76C double-balanced mixer 4.5-9.5 ghz

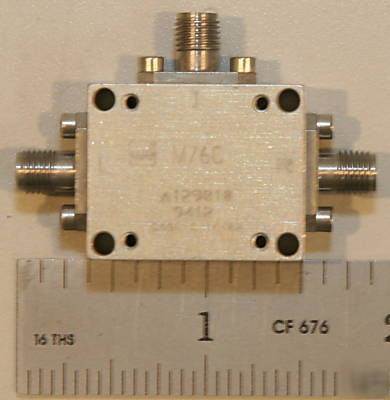

Watkins-Johnson M76C Double-Balanced Mixer 4.5-9.5 GHz
Watkins-Johnson M76C Mixer Specifications:
* RF Frequency Range: 4.5 to 9.5 GHz
* Conversion Loss (Noise Figure) Typ.: 5.8 dB
* fR Level at 1 dB Compression Point Typ.: 6 dBm
* Isolation Typ., L-R: 35 dB
* Isolation Typ., L-I: 22 dB
* Input Intercept Point Typ.: 13 dBm
