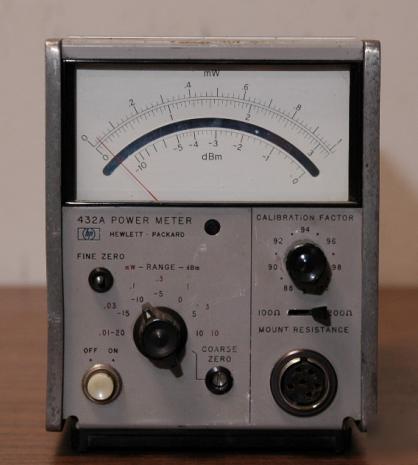

Hp power meter model # 432A
High accuracy over a wide temperature range is featured on the 432A Power Meter. By measuring the output voltage of the thermistor bridges and computing the corresponding power, even higher accuracy of 0.2%, 0.5 W can be obtained. Accuracy can be maintained on even the most sensitive range because the error due to thermoelectric effect is reduced to a negligible level. The unit is an automatic, self-balancing power meter for use with temperature-compensated thermistor mounts. Power Range: 7 Ranges with full-scale readings of 10, 30, 100, and 300 W, 1, 3, and 10 mW Calibrated in dBm (-20 dBm to +10 dBm).
