500MSA/s lcd handheld scopemeter/oscilloscope DSO1200
500MSa/S Handheld Scopemeter/Oscilloscope
Authorized Dealer Sale, 1 Year Warranty

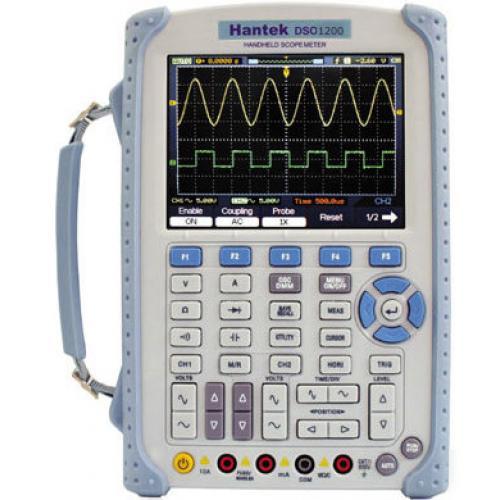

This is a brand new professional Handheld Digital Storage Scopemeter/Oscilloscope - Hantek DSO-1200, Plus Oscilloscope
Probe kit including one pair of clip Probes and a deluxe accessory pack.
l Large 5.7 inch TFT Color LCD Display ,Led backlight, Display clearly.
l USB Host/Device 2.0 full-speed interface ,support removeable disk, RS-232/LAN Optional ,Easy to control by PC
l High Bandwidth 200MHz+ Oscilloscope ,and 6000 COUNTS high precision DMM.
l High refresh rate High Real-time Sample Rate 500MS/s-2GS/s, 50GS/s Equivalent-time Sample Rate.
l FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check ,easy to use on production line.
l Multiform Trigger mode ,2 separate Time Base in ALT Trigger mode ,easy to see 2 signal with different frequency.
l 1000 waveforms save and record.
l Battery Power Operation (Installed) Industrial Design.
l Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
l Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
l Labview\VB\VC Second Design instance.
Resistance: 1M ; Capacitance: 15 pF
32k at Single Channel, 16k at Dual Channel
Edge,Video, Pulse Width, Alternative
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Delay time from ch1 rising edge to ch2 rising edge
Delay time from ch1 falling edge to ch2 falling edge
Manual, Track, Auto Measure Modes
CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Voltage, Current, Resistance, Capacitance,Diode & Continuity
5.7 Inch with LED Backlight Display
240 (Vertical) x 320 (Horizontal) Dots
USB Host / Device 2.0 Full Speed Supported
AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA
Oscilloscope and Multimeter Independence
Supply DEMO source code (VC CVI VB LABVIEW) and technical support via forum & email.
Unit come with 1 Year Manufactory Warranty, available at our Toronto office in Canada.
Address: 300 Esna Park Dr, Unit 23, Markham, ON, L3R1H3, tel: +1-905-4153487.
