Bridgeport NO3 right angle head attachment mill milling

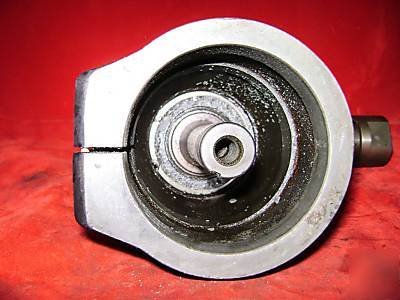

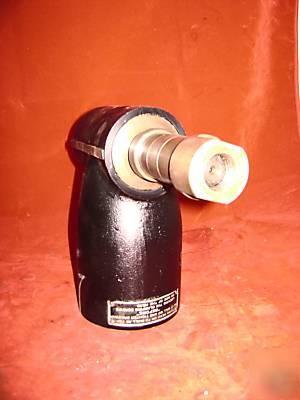

A no3 head only as shown and stated!
3 3/8 spindle bore (to fit most mills)
Item is ready to use and in great shape with no cracks or any repairs,but has been cleaned and repainted.
This is a very versatile tool designed to fit a Bridgeport milling machine or clone.
Description info from mfg for reference.
* For model J and 2J heads mills with 3.375 spindle mount size.
* Simplify right angle work by reducing the need for speacial tooling and elaborate fixturing. They are ideal for milling out pockets and cavities.
* Cutter spindel and driving spindle are mounted in their own anti friction bearings.
* The attachments are slipped on the quill of the head. the driving shaft is held in place by means of a collet and spindle drawbar: then the right angle head clamping screws are tightened to hold the unit firmly to the quill.
MFG Specifications of a new unit for reference only!
