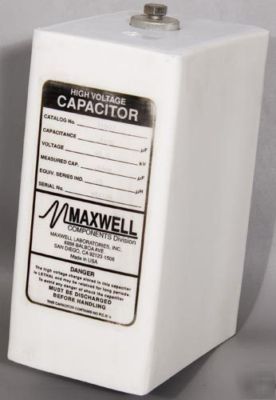

Maxwell 31507 0.03 µf 45 kv high voltage capacitor
Maxwell 31507 0.03 F 45 kV High Voltage Capacitor
Specifications are from General Atomics/Maxwell and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
List Price is: $824.00 NEW from General Atomics
Measured Capacitance: .0304 F
Equivalent Series Inductance: .05 H
Max. Continuous Rep Rate: 100 ppm
Max. Operating Temperature: 40 C
Min. Operating Temperature: -10 C
Design Life at Rated: 2.0 x 108 charge / discharge cycles
Max. Dissipation Factor: 0.20%
Min. Insulation Resistance: 1000 Mohm- F
Case Style: Double ended plastic case
Electrode Stud: .38-16 x .5 UNC
Dimensions: 4.00 x 6.00 x 8.5 inches (102 x 152 x 216 mm)
Note 1: Leak test: 100% test and inspection
Note 2: CO: Impregnant (non-PCB)
Note 3: Consult factory for de-rated operating limits
