Parallax propeller P8X32 basic stamp education board ic

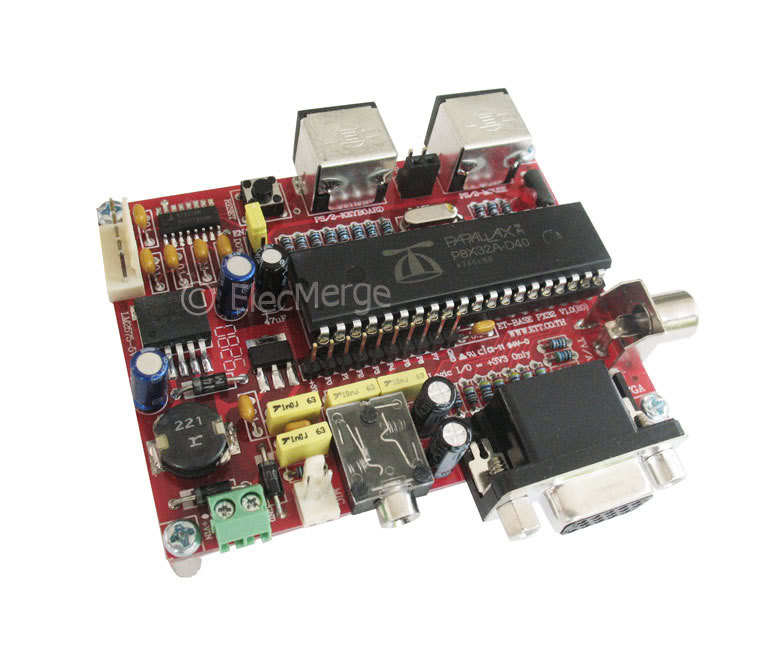

Parallax Propeller P8X32 Education Board
Parallax Propeller P8X32A-D40 Microcontroller Education Board
The Propeller P8X32 Controller board, utilizing the multi-processor high performance Propeller P8X32 microcontroller. Our new P8X32 Controller Board offers standard connectors and support for direct ASCII Keypad Connection, Mouse support,TV output, Audio output and much more. The P8X32 Controller board is a high-level controller that is ideal for use in graphical displays, robots and much more. Write programs in easy to learn high-level SPIN language or basic assembly language for direct peripheral control.
* P8X32A-DIP40 Propeller Chip
* 5.00MHz crystal (5MHz x PLL16 = Clock 80MHz)
* 24LC256 EEPROM (32KByte) for program storage
* PS/2 connectors for Keyboard I/O
* Stereo output with Headphone jack
1 x Parallax Propeller P8X32 Board ( Include Cable & CD Document )
The Propeller chip is designed to provide high-speed processing for embedded systems while maintaining low current consumption and a small physical footprint. In addition to being fast, the Propeller chip provides flexibility and power through its eight processors, called cogs, that can perform simultaneous tasks independently or cooperatively, all while maintaining a relatively simple architecture that is easy to learn and utilize. Two programming languages are available: Spin (a high-level object-based language) and Propeller Assembly. Both include custom commands to easily manage the Propeller chip s unique features.
The P8X32 Controller Board includes the P8X32 microcontroller, which includes 8 separate processors for high-speed parallel processing. This enables complex calculations and peripheral support to be achieved easily whilst maintaining high-speed program execution. Programs can be developed quickly and easily using the high-level SPIN langauge, with direct support and object libraries for TV displays, keyboard and mouse inputs, together with audio input and output. A large number of I/O points are available for interfacing to external equipment. Programs can be developed and compiled using the Propeller software compiler and downloaded directly to the board using a standard USB computer connection.
All the necessary support components are included, with a +5V regulator and 3.3V regulator for on-board power supply. A FT232RL is mounted for direct USB computer connection, together with a RESET button to start program execution. Standard PS/2 mouting sockets are included for keyboard and mouse connections, together with a standard RCA TV connector and audio output jack.
* Parallax Propeller P8X32 Basic Stamp Education Board.
* Software & Documentation on CD.
* Parallax Propeller Web Site.
* Propeller Articles, Software and Documentation Downloads.
* Examples and Source Code on CD
* Manual, Schematic and Datasheets on CD
