Symbol P370 P470 cordless barcode scanner - p 470

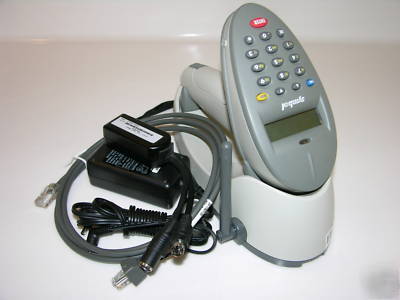

Symbol P470 Cordless Barcode Scanner with Base & Cables
Symbol P370 and Symbol P470 Barcode Scanner Specifications
7 in. H x 9.2 in. W x 3.5 in. D (17.8 cm H x 23.1 cm W x 9 cm D)
Symbol P370 Industrial Version: Yellow w/Dark Gray
Symbol P470 Retail Version: Light Gray w/Dark Gray
36 scan / sec ( bi-directional )
17 - Key keypad, single-stroke numeric, shifted alpha, user programmable function keys
UPC/EAN with supplements, Code 39, Code39 Full ASCII, Code 128, EAN 128, Codabar, 1 2 of 5, Discrete 2 of 5, MSI/Plessey
RS-232, Keyboard Wedge, Synapse smart cable: Scanner/Wand Emulation, RS-232 Single, RS-232 Dual, IBM 46xx, OCIA Keyboard Wedges, USB and OCR
Rechargeable 3.6 VDC 1.1AH Lilon Battery (Green)
Sunlight: 10,000 ft-candles / 107640 lux Artificial light: 450 ft-candles / 4,844 lux
P370: -4 to 122 F (-20 to 50 C)
P470: "32 to 104 F (0 to 40 C)
Symbol P370: Multiple 6ft/1.8 m drops to concrete
Symbol P470: Multiple 5ft/1.1m drops to concrete
Symbol P370 only: All components sealed to IP54against windblown rain and dust
Certification to UL1950, CSA C22.2 No. 950, EN60950/IEC950
FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA
Up to 100 ft./30 m and 100 coexisting systems*
Unlicensed 2.4 GHz point-to-point narrow band
PL 370: Yellow w/Twilight Black; Sealed to IP54
PL 470 Retail Version: Light Gray w/Dark Gray: No Sealing
3.5 in. H x 9.5 in. L x 4 in. W/8.9 cm H x 24.1 cm L x 10.2 cm
Operates from a separate 9V power supply 1.2A
Item is Refurbished P470 Cordless Barcode Scanners.
* Scanner model number: P470-SR1211110US.
* Base model number: PL470-1000FB.
* The set comes with PS/2 Synapse Cable for PC (STI80-0200), Synapse Adapter Cable 6ft (25-17821-20), Battery, Power Supply and AC line.
* These scanners have been fully tested by trained Technician.
* We offer a 60-day repair or replacement warranty from the original date of invoice.
