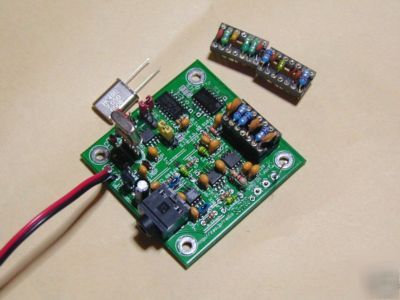

6M and hf,software defined radio kit components
Default crystal are 7.07MHz and 7.03MHZ. both crystals are including.
If you use 7.07MHz crystal, you can receive center frequency at 3.535MHz,7.07MHz,14.14MHz,21.21MHz by ICS512M multipilier.
Receiving width is depended on PC sound card. If you use 48kHz sampling sound card, you can receive 7.046MHz to 7.094MHz.
and crystals for 6m -> 50.022MHz,50.19MHz,50.22MHz is including.
Please visit here for more details bfore placing order.
C1,C2,C3,C4,C5,C6,C12,C15,C16->0.1uF
Q1-> 7.03MHz,7.07MHz,50.022MHz,50.19MHz,50.22MHz
These components may be changed without notice.
You need DC power 9 to 15V. 14pin socket for BPF.
If you live in developping country, I have special price. Please conntact me.
