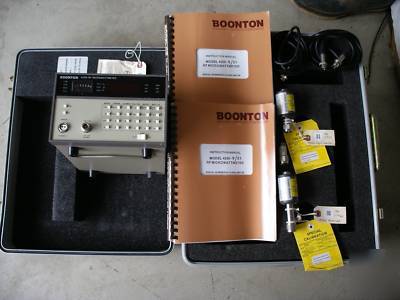

Boonton 4200 rf microwatt meter with 4200-6E, 4200-4E

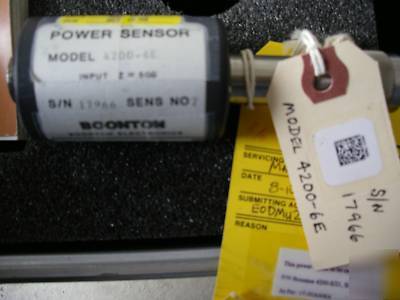

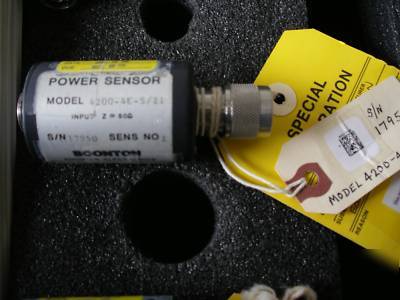

WITH 4200-6E AND 4200-4E POWER SENSORS,

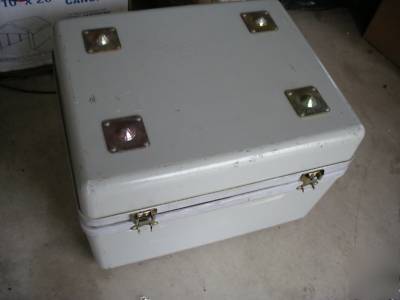

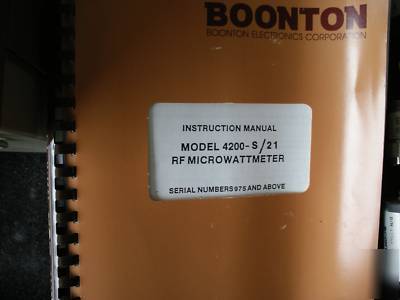

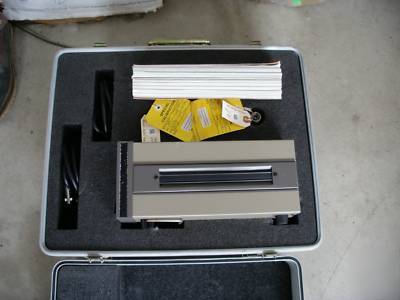

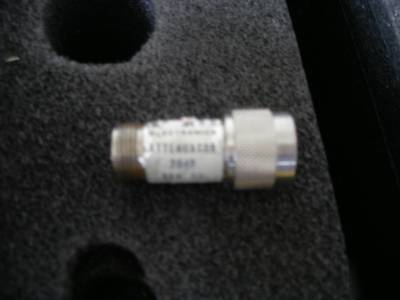

HARD CASE, MANUAL, CABLES AND 20db ATTENUATOR
** Frequency Range: 100 kHz to 100 GHz, sensor dependent. Refer to the Power Meter Sensor section
** Power Range: (Display calibrated in mW, WW, nW, dBm, and dB relative to selected reference); -70 dBm to +37 dBm (0.1 nW to 5W), sensor dependent
** Source: Internal 50 MHz oscillator with Type N female connector on front panel
** Calibration Factors: 3.0 dB to -3.0 dB range in 0.01 dB steps
** Ranging: Autoranging plus hold on range
** Setting Time: Diode and millimeter wave sensors, typically 0.2 to 0.5s except 1.35 to 2.5s on the lowest range. Thermocouple sensors, typically 0.5 to 6s

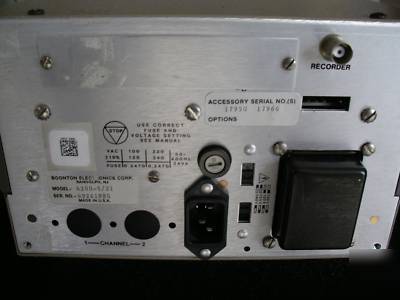

** Watt Mode: 10 volts full-scale, proportional to indicated power over each range
** dB Mode: 8 volts equivalent to 0 dBm. Sensitivity of 1 volt per 10 dB change over the entire dB range of sensor

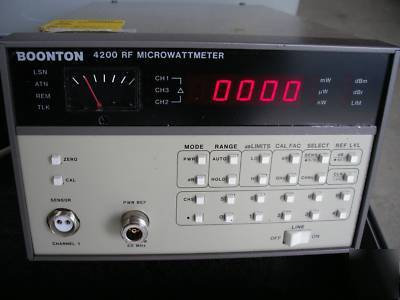

** Display: 4 digit LED, 3 digit display of power, 4 digit display of dB with 0.01 dB resolution. Auxiliary analog display, uncalibrated, proportional to recorder output
** Limits: Entered through front panel in dB only, operable in both dB and power modes
** Annunciators: LEDs indicate mW, W, nW, dBm or relative dB (dBr); use of channel 1 (CH1), channel 2 (CH2, option -03) and channel 3 (CH3 = CH1 - CH2 in dB); out of dB limits; and condition of GPIB activity (LSN, ATN, REM, TLK, option -01B)
** Model (Impedance) (RF Connector): 51011 (4B) 50 ohm N(M)
** Frequency Range: 100 kHz to 12.4 GHz
** Dynamic Range (dBm): -60 to +10
** Overload Rating (Watts) (dBm): 300 mW +25 dBm
