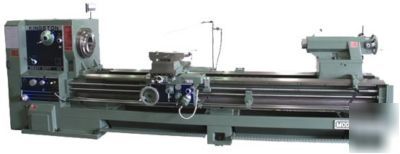

New brand kingston engine lathe 34" x 120" - hp 3000
Height from floor to work center: 48"
Dist. between spindle flange and tailstock center: 120"
Range of spindle speeds: 8-700 rpm
Range of feeds per revolution longitudinal: 0.0024"-0.0337"
Cross: 1/2 against longitudinal feed
Leadscrew diameter and threads per/in: 1-7/8", 2 TPI
Threading range: 1 to 28 TPI 50 kinds
Metric: 1 to 28mm pitch 50 kinds
Compound rest top slide travel: 9-7/8"
Main drive motor: 30 HP (15kw) 6P
Floor space required Length x Width: 238" x 89"
Net weight (approx.): 16,962 lbs
30HP, 220V/440V, 3 phase, 60 cycle motor, switch and wiring complete
Power rapid traverse (4 directions)
Coolant system with pump & piping
Pull drawer chip (coolant) pan
Self spacing supports for leadscrew, feed rod & control rod
Two-speed drive tailstock spindle
Safety chocks in bed for tailstock positioning
Set of change gears for special leads
Toolbox with necessary wrenches and spanners
Instruction manual and parts list
