11/25" x 25" rmt/hostivar auto univ cyl grinder #25737

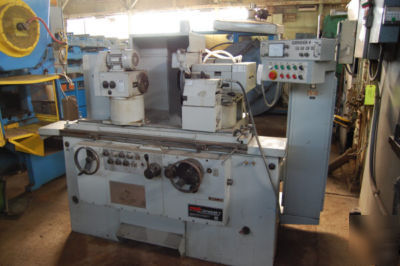

11/25" x 25" RMT/HOSTIVAR AUTOMATIC UNIVERSAL
New 1992, Serial No. 129030, Model BUAJ28
Swing Over Table, Maximum.............. 25"
Swing Over Table, w/o Riser............ 11" 280MM
Distance Between Centers, Nominal...... 25" 630MM
Grinding Wheel Diameter, Maximum....... 15.75" 400MM
Grinding Wheel Width, Standard......... 1.5" 40MM
Grinding Wheel Hole Diameter........... 5" 127MM
Workhead Swivel Range.................. +/- 90-DEGREES
Grinding Wheelhead Swivel Range........ + 45-DEGREES
Table Swivel Range..................... 8 DEGREES
Workhead and Tailstock Center Tapers... #4 MT
Longitudinal Table Speed, Range........ .16 to 21.3 FPM
Workhead Spindle Speeds, Range......... 22 to 710 RPM
Grinding Wheelhead Spindle Motor....... 5.5 HP
Floor Space Required, W x D............ 9' x 6'
Weight, Approximately.................. 6000 LBS
