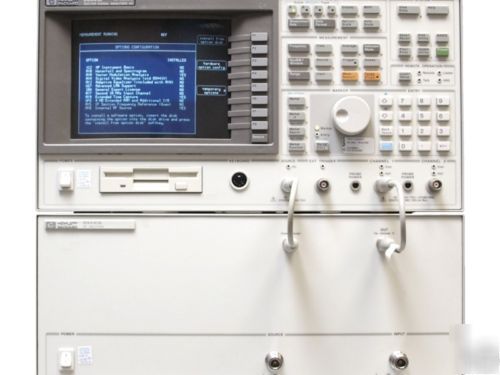

Agilent hp 89441A vector signal analyzer dc-2.6GHZ
The Agilent 89441A covers baseband through RF frequencies of DC to 2.65 GHz in scalar and vector analysis modes. The scalar RF instrument mode allows full-frequency coverage in spans to 2648 MHz.Vector RF mode offers exceptional speed and additional signal processing for enhanced time-domain characterization and demodulation. Vector spans as wide as 7 MHz can be selected anywhere in the 2.65 GHz frequency range. A vector baseband mode is also available to provide all of the features and functionality of the Agilent 89410A. In vector RF mode, both phase and amplitude characteristics are captured in the time-series data. This information can be processed for narrow resolution spectrum analysis, AM/FM/PM demodulation, time selective analysis, vector modulation analysis (optional), and many other types of measurements.
Vector RF mode offers exceptional speed and additional signal processing for enhanced time-domain characterization and demodulation (AM/FM/PM). Both phase and amplitude characteristics are captured in the time-series data. Up to 11 standard based measurement presets to include NADC, GSM,PHP, CDMA, W-CDMA, digital video signal analysis and more.
1M Memory Samples, Modulations; BPSK, QPSK, Offset QPSK, DQPSK, pi/4 DQPSK, 8PSK, 16QAM, 32QAM, MSK, GMSK
1.44MB 3.5" floppy disk drive, MS-DOS or LIF format.
Interface connections; GPIB, RS-232, and Centronics (parallel) interfaces for hard copy output to plotter or printer.
100kByte non-volatile RAM disk.
DC to 2.65 GHz frequency range
Scalar and vector analysis modes
Full frequency coverage in spans to 2648 MHz
Exceptional speed and additional signal processing in RF mode for enhanced time-domain characteristics and demodulation
