Jovy 7500 bga xbox infrared rework irda reballing 80MM
( ENGLISH - SPANISH - FRENCH - RUSSIAN - ITALIAN - CHINESE - GERMAN MANUAL)
WE DON'T SELL TO THIS COUNTRIES : GERMANY / INDONESIA / SPAIN / SWEDEN / UK / USA / CZECH / BELARUS / RUSSIA / POLAND / UKRAINE
COLOMBIA / MEXICO / BRAZIL / PERU / PANAMA / ARGENTINA SON BIENVENIDOS , TENEMOS EL MANUAL EN ESPANOL
ALSO THE REBALLING STATION N3 OF 80 MM
WITH 3 UNIVERSAL STENCILS .500/.600/.760, KOPTON AND SQUEEGE
WITH A BOTTLE OF REBALLING BALLS 0.600mm ( 1 UNLEAD OR 2 WITH LEAD )
AND ALSO WE HAVE A SPECIAL SUPPORT FOR THE XBOX PCB
BUT ALSO YOU WANT YOUR STENCIL PACKS:
CREATE YOUR OWN PROFILE OF DIGITAL CONTROL WITH THE SOFTWARE
INCLUDES FULL PICTORIAL MANUAL
- Flexible uses for all different kinds of Components like SMD, BGA,
CBGA, CCGA, CSP, QFN, MLF, PGA and All Epoxy undefiled BGA.
- Recommended for reworking All Plastic parts, PTH, Sockets,
Connectors and Metal Shields .
- Complete reworking Processes (Pre-Heating, Soak, Re-Flow
& cooling) stages are achieved for an accurate and standard reworking process .
- IR with no effect on adjacent Component .
- Sensitive Temperature measurement sensor to obtain an accurate
and instantaneous Temperature reading and monitoring.
- Internal Picking System for Safe and Stable Removal of the ICs.
- Manual or automatic (profiled) cooling system to achieve complete
and Standard & cooling stage process for PCBs .
- Guaranteed homogeneous and safe uniform heat distribution .
- Programmable, Automated & dynamic control for the ER-7500 heaters
- Guaranteed delivery of the heat energy at the precise time and location
- Freely programmable temperature profiles .
- Real time process monitor on your PC or Laptop .
- Avoiding Hot and Cold spots occurrence with no nozzles focus hoods usage
- Positioning during rework process is applicable by using laser pointer on PCB
- Precise and smooth running X-Y table included with the package.
- Easy & Friendly operation Via Automatic, Manual or PC Modes.
- Ready for sophisticated future technologies.
1- Fast USB Data Streaming and control for all Machine features and processes.
2- Real Time PCB Temperature monitoring
3- Complete Process Graph with Bitmap printing & archiving.
4- Two modes for temperature unit adjusting ( C' / F' )
5- User Profile Creation and uploading
6- Upload and adjust Machine setting (Sleep mode, Alarm sound, etc)
7- Upload Factory initial Settings.
8- Download & run ready made standard profile from
Rework tray With Preheating Plate
Thermocouple and Suction Chip Pen Included
Software for JOVY RE 7500 Station
DGC RBSN3 Reballing Station Pro N 3 with 3 Stencils , squeege and Kopton tape
7 Stencils for Xbox & PS3 for RBSN3
61 Nets for Direct Reballing for all kind of chips ( ULTRA MAX PACK )
2 10CC AMT 559-ASM Gel Flux Tubes with applicator & 1 IC Popper
1 Bottle of Balls ( 1 or 2 depending on Lead or Unlead)
PLEASE CHECK OUT THE VIDEOS OF THE JOVY 7500

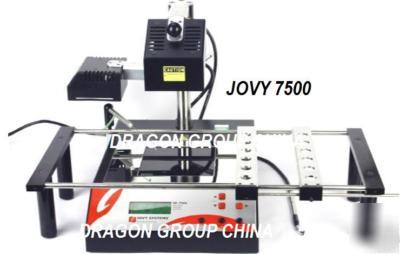

This is a brand new, Model JOVY RE 7500 soldering/rework station from JOVY Systems " TECHNOLOGY VERSUS FUTURE " , an entry level desoldering/soldering rework station for surface or hole mount components. With JOVY , you get a temperature controlled rework welder station with all the enhancements including IRDA preheating surface, Infrared centered or dissipated preheating, and Vacuum Suction Pen, Laser Pointer and Regulated Smart Digital Thermocouple with computer control software. All controllers are fully digital. 80 mm of Preheating capacities with 50mm Infrared Area and full board support.
