Linear bearings & rails, nsk #LGY30, 2 rails, 4 blocks

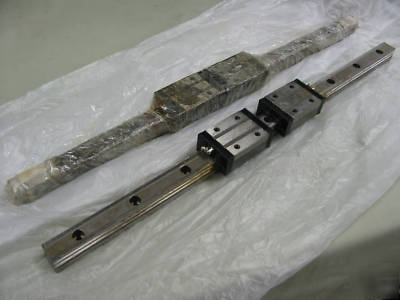

NSK #LGY30, INCLUDES 2 RAILS AND 4 BEARING GUIDE BLOCKS
RAIL IS 27.5MM TALL, 28MM WIDE, IT IS 28 3/8" LONG WITH 9 - 9MM MOUNTING HOLES, THESE HOLES ARE COUNTER BORED FROM THE TOP

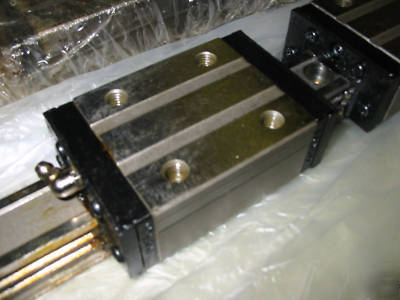

THE BLOCKS ARE 60MM WIDE X 68MM LONG [NOT INCLUDING THE PLASTIC WIPERS] AND HAS 4 - M8X1.25 TAPPED HOLES IN THEM.
THE OVER ALL HEIGHT OF THE BLOCK AND THE RAIL IS 42MM
THESE RAILS ADN BLOCKS COST OVER $1100 LAST YEAR.
THIS RAIL/GUIDE BLOCK ASSEMBLY HAS NEVER BEEN USED.
