New 3.5" lcd snake micro inspection camera see wireless

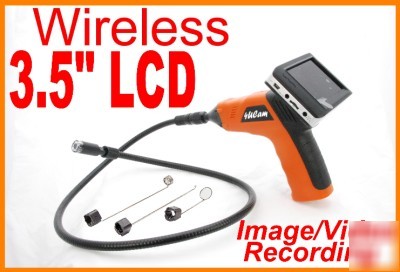

WIRELESS Micro Inspection Camera NEW MODEL
3.5 LCD video recording monitor
This is NOT a Ridgid Seesnake System, but has wireless features and more
This new Digital Micro Inspection Camera, video & image recording Monitor, is a hand-held video inspection system, added the wireless feature. The digital platform allows you to take picture or record video, view and play-back on high resolution 3.5 monitor. You can also connect to your TV or download saved image and video to your computer. There is no more restriction comparing to the earlier version which forces the camera and monitor to connect together. It is a better designed micro inspection camera set, the wireless option allows using detached monitor to view camera.
This new arrival of micro inspection camera set with built-in wireless receiver, and rechargeable Li-battery 3.5 LCD monitor, allows to view camera remotely on high visibility 3.5 LCD monitor. The camera head is equipped with fully adjustable twin LED lights for night vision and day time usage, waterproof camera head allows to view maximum 10' under water (when assembly properly). A flexible 3' cable (optional extended to 30 ft) helps to extend your vision to the point of discovery. No more struggling with flashlight and a mirror. This micro inspection tool set helps you to identify problem and its location, and make a tough job easier. Tool set comes with accessory hook, magnet and mini mirror to speed up the solution.
High resolution 3.5 color LCD with 320x240 resolution
Image and video capture with JPG Images, AVI Video (640 x 480) in micro SD Card.
Wireless version allows monitor to detach from the hand-held for better viewing
Built-in rechargeable Li-battery, wireless receiver with 3.5 color monitor (optional 2.4 , 7 LCD)
Comes standard with a full color camera, adjustable lighting and 3.5 LCD monitor
Comfort Grip housing with video output to TV, and USB port connect to PC.
Why just use you monitor as inspection system?
By adding the wireless backup camera, you can use the monitor as rear view backup camera system. You can also use
it in-doors as a Baby Monitor, Security Monitor. This monitor can view all our wireless cameras we carry. You can add other
wireless cameras found in our accessories page.
Transmission Frequency ISM 2,483 Mhz
Waterproof capacity 10' when properly assembled
Receiving Frequency 2,414-2,468MHz
Rechargeable Li-battery 2hr (fully charged)
Receiving Sensitivity <= -85 dBm
Video Output Signal Level .9-1.3V~ @75ohm
Exterior Power Supply + 5 V DC
Consumption Current (Max.) 680mA
Unobstructed Effective Range 10M(Min.)
Dimensions (W x D x H) 100 x 70 x 25mm
3.5" LCD monitor built-in wireless
receiver and Li-rechargeable battery
