Thomas oil-less compressor *500CAR w/rear cooling fan
THIS COMPRESSOR IS USED ON THE;

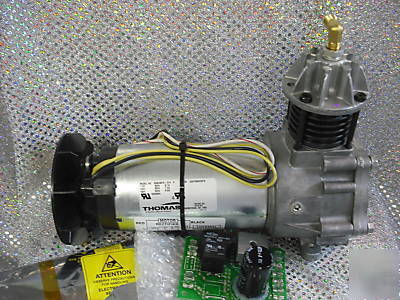

WITH REAR MOTOR COOLING FAN AND MAIN COMPRESSOR CIRCUIT BOARD AS PICTURED!
Complete with start relay and capacitor
Wiring diagram printed right on motor.
This Oil Less compressor is used by 70% of the oil-less recovery equipment manufacturers.
Some of the manufacturers that use the 500 CAR oil-less compressor are,
Includes Start Relay and Start Capacitor.
* Custom designed for Refrigerant Recovery applications
* All wetted aluminum parts treated for corrosion protection from moisture
* Lightweight die cast aluminum components
* Oil-less, non-lubricated piston and cylinder
* Permanently lubricated ball bearings
* Balanced for smooth, low vibration and quiet operation
* Compatible with Refrigerants R-11, R-12, R-22, R-113, R-114, R-123
* R-134A, R-404A, R-410A, R-500 and R-502
* Minimum Compression Ratio = 50:1 (11" Hg @ 435 psig and 29.5" Hg barometer)
* Liquid Recovery Rate: 3-5 lb/min
* Vapor Recovery Rate: .3-.5 lb/min
* Liquid compatible Head/Valve system
*Recovery rates may vary depending on recovery system design. Consult factory for custom applications
* Automotive Refrigerant Recovery
* Commercial HVAC Refrigerant Recovery
* Max. Inlet Pressure: 435 PSI / 30 bar
* Vacuum Continuous: 27.0 in Hg
* Motor Voltage / Frequency: 100-115 / 50/60
* Motor Type: Rectified DC Permanent Magnet
* Ambient Temperature, Min: 32 Degrees Fahrenheit
* Ambient Temperature, Max: 122 Degrees Fahrenheit
For series datasheet and exact dimensions please visit: http:// /workareashowcontent.aspx?id=11000
Product Family/Type: WOB-L (For more information about WOB-L Piston Technology go to http:// /productCategoryList.aspx?id=10698)
