#7225 - cincinnati vercipower 650-20 horizontal mill

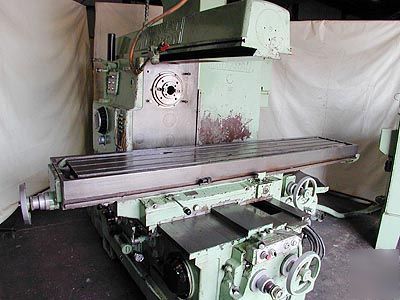

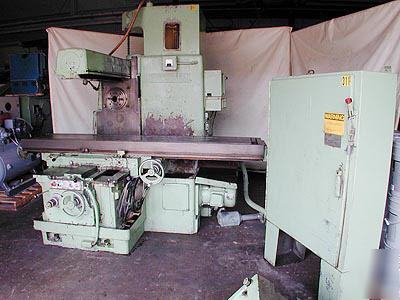

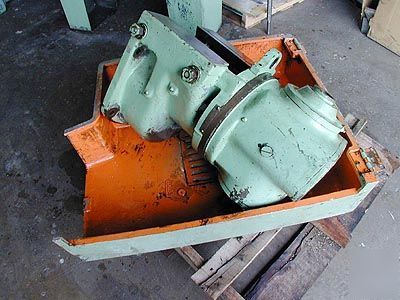

CINCINNATI MODEL 650-20 VERCIPOWER HORIZONTAL MILL WITH UNIVERSAL HEAD
Table working surface 20" x 104-1/2"
Spindle assembly vertical travel 24"
Spindle speed range (24) 14 - 1400 RPM
Longitudinal 6 crossfeeds (32) 3/8 to 90 IPM
Vertical feeds (32) 3/16 to 45 IPM
Center of table to machine face:
Longitudinal cross power rapid traverse rate 150 IPM
Vertical rapid traverse rate 75 IPM
50 HP spindle drive motor and controls
