Credit card reader writer msr 206 MSR206 MSRE206

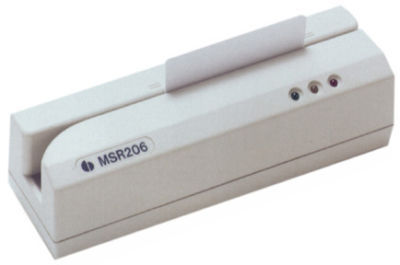

Magnetic Card Reader Writer Encoder MSR 206 MSR206 MSRE206
MSR206 Functions & Commands Compatible
Manual Swipe Magnetic Card Reader/Writer
Series is designed to offer a card reading / writing
Solution for ISO 7811-6 formats.
It reads and writes up to 3 tracks of data, e.g. decoding / encoding
and verifying up to 3 tracks of data simultaneously.
Provides a standard RS-232 interface to communicate with a host
System or other terminal computers.
Reading / writing magnetic stripe cards complies with ISO 7811 / 1~6 formats
Manual Swipe to read and/or write cards with PC standard RS-232 interface
Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe)
5~35ips operational swipe speed of writing data
5~55ips operational swipe speed of reading data
+24VDC+/-10%, 2.0A Max., external power adapter attached
Writing and verifying data on single, dual, or triple track in one swipe

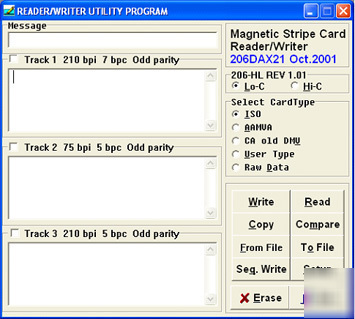

Programming software included for various read / write applications
Program software for DOS and Windows
High/Low Coercively encoding circuitry selectable on screen
Programmable leading bit, raw data, DMV/AAMVA, and user defined format
Compact size with dimensions of 210(L) x 62(W) x65(H) mm
Operating voltage: +24VDC +/- 5%
Consumption: Typical 350mA Max. and 600mA plus for each writing track

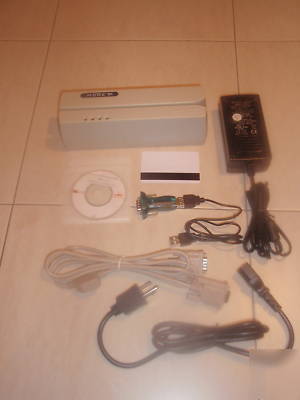

Power Supply: External Power Adapter 24 V / 2.2 A.
Standard RS232 signal levels
Dielectric strength: 500VDC for 1 minute
Dimension (L*W*H) :210*62*65 mm.
Swipe : Manual, single direction
Read speed: STD card Jitter +/- 15% Amp. 60% 5~55 ips
Write jitter : Interval < +/-10%, Sub-interval < +/-12%
Head life: Min. 500K swipes for both read/write head
MSRE206 Magnetic Card Reader/Encoder
Blank Writable/Rewritable 3-Track High Density Magnetic Stripe Cards
