Ellis manufacturing pivoting shore cup perpindicular

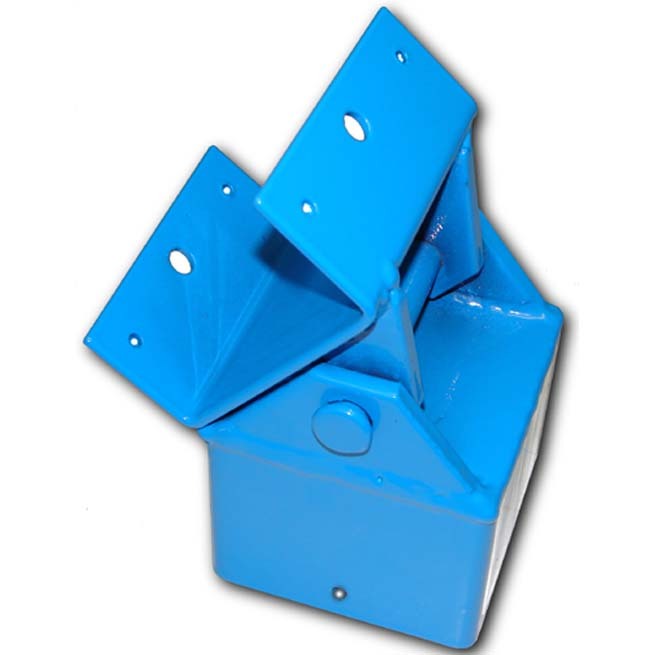

PIVOTING SHORE CUP PERPENDICULAR TYPE B (PC-B)
Shore Cup is designed to pivot in a direction perpendicular to the purlin it attaches to. The pivoting motion ensures a strong connection between the Ellis Shore and Purlin / Stringer WITHOUT SHIMMING or Cleating! Click on the picture above for more details.
Pivoting Shore Cup - Perpendicular
ELIMINATE SHIMMING & CLEATING!!
Allowing Ellis Shore to lean up to
between Ellis Shore and purlin/ stringer withstanding up to 6000 LBS.
Range of Adjustment: 90 Degrees
