Hitachi high resolution color camera vk-S214R ntsc

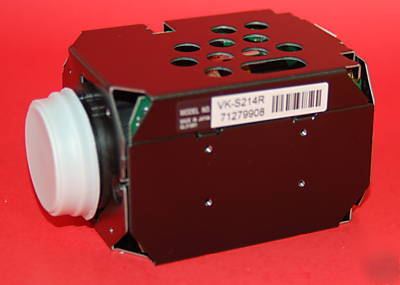

Hitachi DSP CCTV High Resolution Color Camera VK-S214R NTSC
The VK-S214R is a compact chassis-type CCTV camera designed for easy integration into surveillance systems. A built-in zoom lens permits the user to monitor the scene from variable viewing angles ranging from wide to telephoto. And remote focus, iris and zoom control are possible with the RS-232C connection. These features plus a 1/4-inch high resolution color CCD pickup make the VK-S214R suitable for surveillance situations.
Metal Frame for Easy Installation
The VK-S214R comes in the compact metal frame so you can install it in the casing of your choice. The solid metal frame allows the camera to track an object with reliability.
Built-In Optical Power Zoom Lens
The VK-S214R's built-in X22 optical zoom lens is highly reliable and offers auto focus, auto iris and zoom functions, letting the user monitor a scene from any desired angle of view. In conjunction with X2 digital zoom, the total zoom ratio is X44.
The chassis is equipped with a high-sensitivity, high-resolution 1/4- inch CCD pickup featuring approximately 380,000 effective pixels. Thanks to a high 470 TV-lines horizontal resolution, picked-up images are reproduced with detail and clarity.
AI (Artificial Intelligence) Digital Signal Processing Control
AI Auto Iris: Adjusts iris so that video output is kept at a fixed level, even if surrounding illumination changes.
AI Auto White Balance: Provides natural color reproduction according to ambient lighting.
You can control the video signal level for backlight compensation.
Remote Control through RS-232C
Remote operations are possible via the RS-232C, which allows control of the camera s focus, iris and zoom.
Vertical edges are digitally enhanced to make recorded images clear and stable useful when monitoring a moving object.
