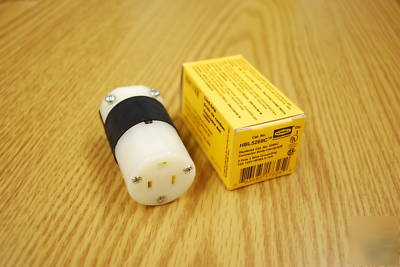

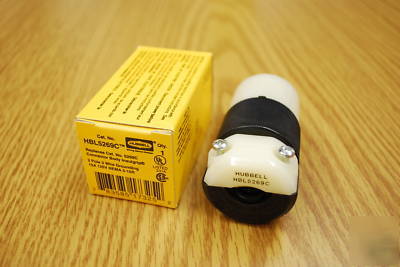

Hubbell "insulgrip" #HBL5269C straight blade connector
Hubbell HBL5269C Insulgrip Series
Hubbell s Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets.
2P3W, 15A 125V, 5-15R, Black and White Nylon.
Hubbell HBL5269C Insulgrip Series Features:
Poles and Wires: 2 Pole, 3 Wire Grounding
Plug/Connector Grade: Insulgrip
Cord Dia.: .230"-.720" (5.8-18.3)
Description: Straight Blade Connector
Type: 2 Pole, 3 Wire, Grounding
Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
Housing Material: Nylon-Black
Retainer Material: Polycarbonate-Clear
Cord Clamp Material: Nylon-Natural
Terminal Screw Material: #8-32 Brass, Multiple Drive
Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
Wire Clamps Material: 0.062" (1.6) Steel - Ni Plated
Body Holding Screws: Steel Multiple Drive
Contact Holder Material: Nylon-Natural
Power Contacts Material: .040" (1.0) Copper Alloy
Dielectric Voltage: Withstands 2,000V minimum.
Current Interrupting: Certified for current interrupting at full rated current.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Terminal Accommodation: #18-#10 AWG copper stranded conductor
Product Identification: Ratings are a permanent part of the device.
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75 C, minimum -40 C (w/o impact).
Certified: UL2305 OEM and replacement use on convention center flat cable cord sets.
