New 12MM rotary encoder switch with panel 10MEGO

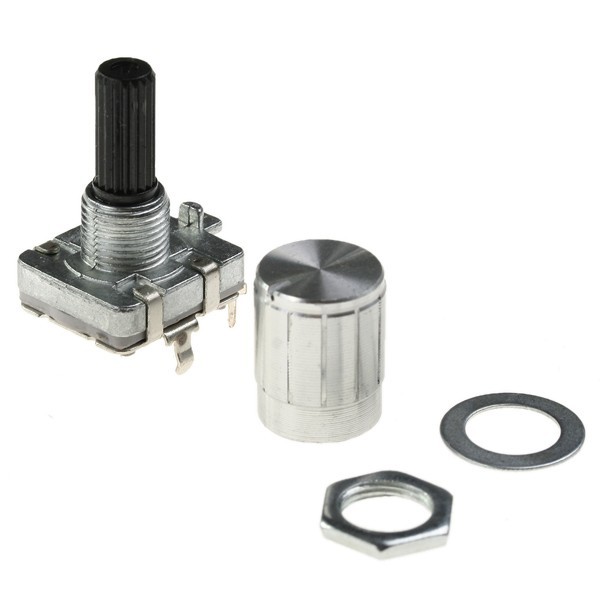

12mm Rotary Encoder Switch With Panel 10mego NEW
* Electrical Output: 2-bit gray code
* Closed Circuit Resistance: 3 ohms
* Contact Rating: 1 mA at 5 VDC
* Insulation Resistance: 10 megohms at 250 VDC
* Dielectric Withstanding Voltage
* Electrical Travel: Continuous
* Contact Bounce (15 RPM): 5.0 ms.
* Mechanical Angle: 360 continuous
* Running Torque: 30.6 to 204 g-cm (0.42 to 2.83 oz.-in.)
* Shaft Side Load (Static): 2.04 kgf (4.5 lbs.) minimum
* Weight: 3 gm (0.1 oz.) max
* Operating Temperature Range: -30 C to +70 C (-22 F to +158 F)
* Storage Temperature Range: -40 C to +85 C (-40 F to +185 F)
* Humidity: MIL-STD-202, Method 103B, Condition B
* Contact Bounce: 10~55~10 Hz / 1 min. / Amplitude 1.5 mm
* Rotational Life: 30,000 cycles minimum
* Switch Life: 20,000 cycles minimum
* Wave Soldering: Sn95.5/Ag2.8/Cu0.7 solder with no-clean flux: 260 C max. for 3-5 seconds
* Hand Soldering is NOT recommended
* Power Rating (Resistive Load): 10 mA at 5 V DC
* Switch Travel: 0.5 +0.4/-0.3 mm
* Switch Actuation Force: 360 +153/-102 gf (5 +2.1/-1.4 oz.-in.)
